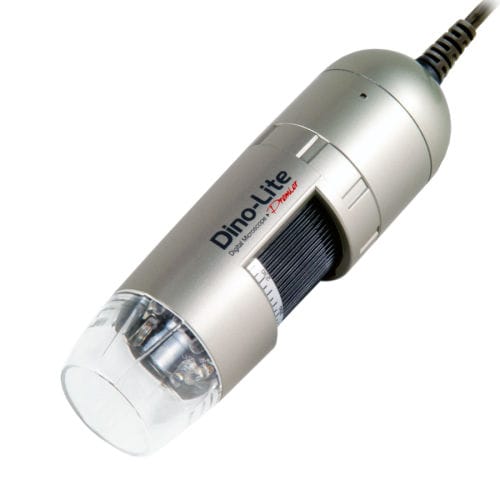

Infrared microscope AM3111

educationalindustrialzoom

The AM3111 digital microscope is an economical pick that provides smooth imaging and balanced color performance, making it suitable for a variety of applications, such as simple industrial inspections, educational use, or personal hobbies. Overview Smooth Imaging The CMOS image sensor transmits smooth images at up to 60 fps with 640 x 480 resolution. Adjustable Magnification The adjustable magnification ranges from 20x ~ 50x for a broad view to over 200x for detailed close-ups, easily controlled with the focus knob. Specification Lighting Light/ LED type - White Number of LEDs - 8 Infrared filter - IR cut-filter >650 nm Diffuser available - No Emission filter - No Polarizer - No Optics Macro zoom - No Working distance - Standard Lens type - Glass with anti-reflection coating Sensor Sensor type - CMOS Resolution - VGA (640x480) Maximum frame rate - 60 fps Compatibility Interface - USB 2.0 Operating system - Windows 7, 8, 10 & 11, MacOS 10.9 and up Software - DinoCapture 2.0 (Windows), DinoXcope (Mac OS) Supported image formats (Windows) - BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX Supported video formats (Windows) - WMV, FLV, SWF Supported image formats (MacOS) - JPEG, PNG Supported video formats (MacOS) - MOV Imaging standards - DirectShow, UVC Wifi - No Housing Housing material - Composite/ plastic housing Magnification lock - No Cable length - 1.8m Features Special feature - No Measurement - No Calibration - No Microtouch sensor - No ESD safe - No
