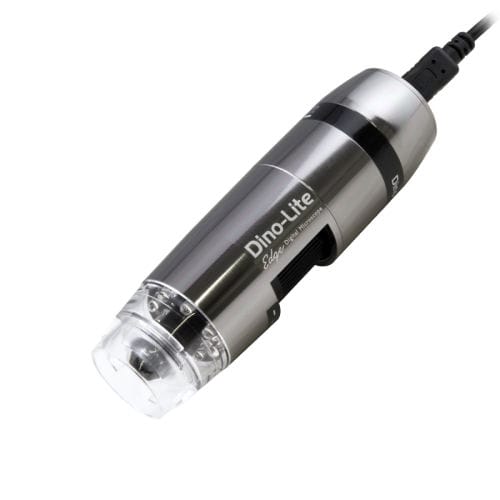

Long working distance microscope AM4013MTLinfraredmeasuringinspection
Add to favorites
Compare this product
Characteristics
- Type
- infrared
- Technical applications
- inspection, measuring
- Configuration
- portable
- Light source
- LED illumination
- Options and accessories
- computer-assisted
- Other characteristics
- digital camera, USB, long working distance, image capture, zoom
- Magnification
Min.: 10 unit
Max.: 90 unit
- Weight
140 g
(4.9 oz)- Length
10.5 cm
(4.1 in)
Description
Dino-Lite professional model in aluminium alloy housing and long working distance and Microtouch. The aluminium housing offers enhanced protection and durability and has the best look and feel.
Specification
Lighting
Light/ LED type - White
Number of LEDs - 8
LED on/off switchable: - Yes
Infrared filter - IR cut-filter >650 nm
Diffuser available - No
Emission filter - No
Polarizer - No
Optics
Macro zoom - No
Working distance - Long
Lens type - Glass with anti-reflection coating
Sensor
Sensor type - CMOS
Resolution - 1.3 Megapixel (1280x1024)
Maximum frame rate - 30 fps
Compatibility
Interface - USB 2.0
Operating system - Windows 7,8,10 & 11, MacOS 10.9 and up
Software - DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows) - BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows) - WMV, FLV, SWF
Supported image formats (MacOS) - JPEG, PNG
Supported video formats (MacOS) - MOV
Imaging standards - DirectShow, UVC
Wifi - Wireless-ready, requires the WF-10 WiFi streamer (optional)
