- Metrology - Laboratory
- Laboratory Equipment
- Infrared microscope
- Dino-Lite Europe/IDCP BV

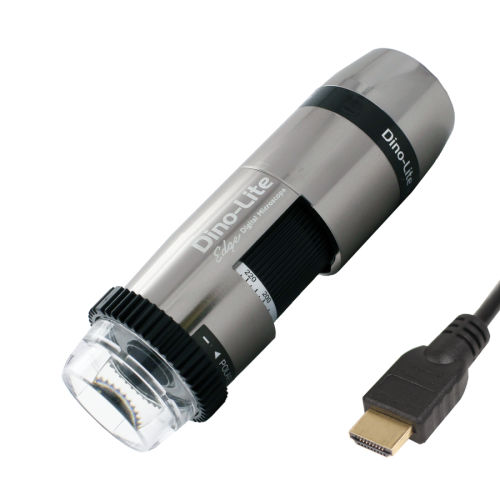

Infrared microscope AM5218MZTWmeasuringinspectionpolarization
Add to favorites
Compare this product
Characteristics
- Type
- infrared
- Technical applications
- inspection, measuring
- Observation technique
- polarization
- Configuration
- portable
- Light source
- LED illumination
- Other characteristics
- with HD digital camera, high-resolution, zoom, high-speed
- Magnification
Min.: 10 unit
Max.: 50 unit
- Weight
125 g
(4.4 oz)- Length
10.5 cm
(4.1 in)
Description
Change between micro- and macro- observations with Dino-Lite AM5218MZTW wide field of view microscope. AM5218MZTW is a 720p live streaming microscope with direct HDMI connectivity to LCD and TV displays, suited for applications that only require a monitor.
The main features of the AM5218MZTW are:
• HDMI interface
• High optical resolution
• Wide Field of View (WFOV)
• Microtouch button
• Interchangeable caps
• HD 720p
• And more...
Specification
Lighting
Light/ LED type - White
Number of LEDs - 8
LED on/off switchable: - Yes
Infrared filter - IR cut-filter >650 nm
Emission filter - No
Polarizer - Yes, linear
Optics
Magnification - 10x ~ 50x
Macro zoom - No
Working distance - Standard
Lens type - Glass with anti-reflection coating
Sensor
Sensor type - CMOS
Resolution - HD 720p
Maximum frame rate - 60 fps
Compatibility
Interface - HDMI
Wifi - No
Housing
Housing material - Metal housing
Magnification lock - Yes
Features
Special feature - No
Measurement - No
Calibration - No
Microtouch sensor - Yes
ESD safe - Yes
