High-speed microscope AM73115MZTL

opticalmeasuringfor analysis

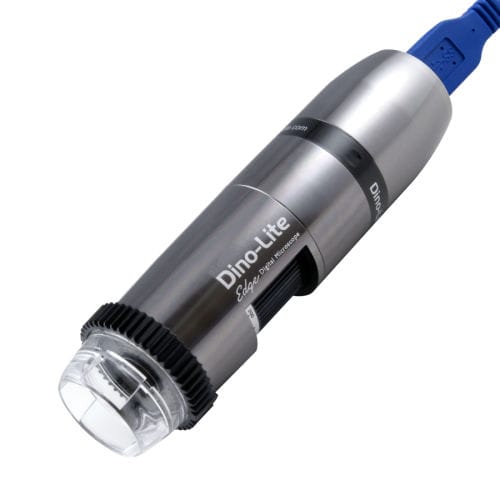

With the use of the USB 3.0 connection the AM73115MZTL is able to capture smooth and high-quality images. The Edge series optics and the special feature Flexible LED Control (FLC) makes the AM73115MZTL the best choice for the more demanding applications The AM73115MZTL is part of the high speed range due to its USB 3.0 connection with a maximum speed of 45fps at 1280x960 and 15fps at 2560x1920. With its magnification range from 10 – 140x and long working distance, it is suitable for a broad range of applications. Because of the built-in polarization filter this model is ideal when working with shiny or reflective objects such as metal, plastic, glass, jewelry, electronics, etc. The main features of the AM73115MZTL are: • 5 Megapixel Edge sensor • USB 3.0 with up to 45fps • Long working distance • Integrated polarizer • Aluminum housing • Flexible LED Control (FLC) • Extensive measurement functions • Calibration • Exchangeable front caps Specification Lighting Light/ LED type - White Number of LEDs - 8 LED on/off switchable: - Yes Infrared filter - IR cut-filter >650 nm Diffuser available - Yes (N3C-D included) Emission filter - No Polarizer - Yes, linear Optics Macro zoom - No Working distance - Long Lens type - Glass with anti-reflection coating Sensor Sensor type - CMOS Resolution - 5.0 Megapixel (2560x1920) Maximum frame rate - 45fps (max 20fps video recording) Housing Housing material - Metal housing Magnification lock - Yes Cable length - 1.8m Features Special feature - Flexible LED Control (FLC) Measurement - Yes Calibration - Yes Microtouch sensor - Yes ESD safe - Yes
