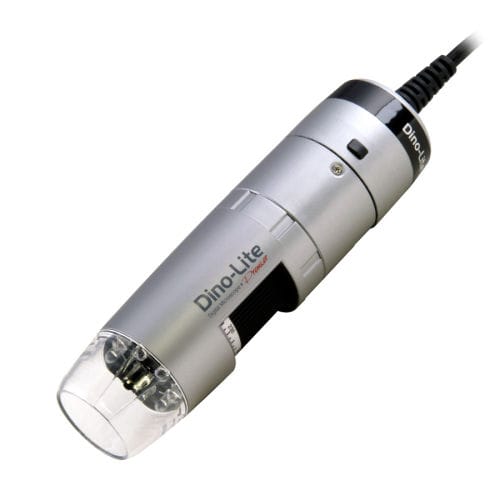

Infrared microscope AF3113T

measuringindustrialUSB

The AF3113T has both the measurement functions and the Microtouch button to capture pictures directly from the Dino-Lite. The improved image sensor provides a high quality image with very natural colors and it also offers a high refresh rate for better real time images. It is an affordable solution for industrial, scientific and business use. Specification Lighting Light/ LED type - White Number of LEDs - 8 LED on/off switchable: - Yes Infrared filter - IR cut-filter >650 nm Diffuser available - No Emission filter - No Polarizer - No Optics Macro zoom - No Working distance - Standard Lens type - Glass with anti-reflection coating Sensor Sensor type - CMOS Resolution - VGA (640x480) Maximum frame rate - 30 fps Compatibility Operating system - Windows 7, 8, 10 & 11, MacOS 10.9 and up Software - DinoCapture 2.0 (Windows), DinoXcope (Mac OS) Supported image formats (Windows) - BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX Supported video formats (Windows) - WMV, FLV, SWF Supported image formats (MacOS) - JPEG, PNG Supported video formats (MacOS) - MOV Imaging standards - DirectShow, UVC Wifi - Wireless-ready, requires the WF-20 adapter (optional) Housing Housing material - Composite/ plastic housing Magnification lock - No Cable length - 1.8m Features Special feature - No Measurement - Yes Calibration - Yes Microtouch sensor - Yes ESD safe - No
