- Metrology - Laboratory
- Laboratory Equipment
- Digital microscope
- Dino-Lite Europe/IDCP BV

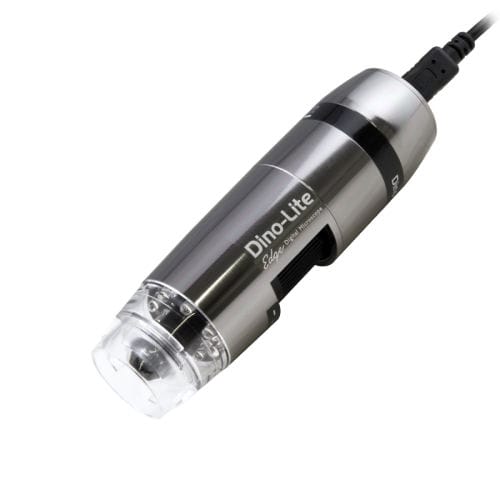

Digital microscope AM8917MT8laboratoryUSB
Add to favorites
Compare this product
Characteristics
- Type
- digital
- Technical applications
- laboratory
- Other characteristics
- USB
- Magnification
Min.: 700 unit
Max.: 900 unit
- Weight
120 g
(4.2 oz)- Height
133 cm
(52.4 in)
Description
Introducing EDOF on AM8917MT8 for generating images with an extended depth of field, this 8-megapixel 700x ~ 900x digital microscope provides a clear imaging experience and is equipped with a range of tools for professional use such as DPQ, refocus mode, AMR, and eFLC.
Specification
Lighting
Light/ LED type - White LEDs
Sensor
Resolution - 8.0 Megapixel (3840x2160)
Maximum frame rate - 10 fps at 8.0 MP, MJPEG 25 fps at 2.0 MP, MJPEG
Compatibility
Interface - USB 2.0
Operating system - Windows 10/11 macOS 10.14 or later
Supported image formats (Windows) - DinoCapture 2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
Supported video formats (Windows) - DinoCapture 2.0: WMV, FLV, SWF
Supported image formats (MacOS) - DinoXcope: PNG, JPEG
Supported video formats (MacOS) - DinoXcope: MOV
Housing
Magnification lock - Yes
Cable length - Approx. 1.8 m
Features
Special feature - EDOF, EDR, DPQ, and Auto/Manual Refocus are available on Windows PC only.
Measurement - Yes
Calibration - Yes
Microtouch sensor - Yes
