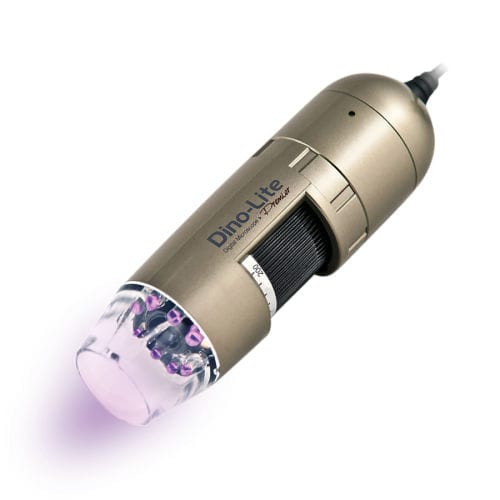

Microscope with special lighting AM4113TL-FVW

opto-digitalinspectionmeasuring

The VW series has two types of LED lights that are switchable between white and UV light. This model has a long working distance and a filter to filter out the returning UV light so that an image with natural colors can be obtained. Specification Lighting Light/ LED type - 395 nm UV + white Number of LEDs - 4+4 LED on/off switchable: - Yes Infrared filter - IR cut-filter >650 nm Diffuser available - No Emission filter - Yes, Emission barrier filter 400 nm Polarizer - No Optics Macro zoom - No Working distance - Long Lens type - Glass with anti-reflection coating Sensor Sensor type - CMOS Resolution - 1.3 Megapixel (1280x1024) Maximum frame rate - 30 fps Compatibility Interface - USB 2.0 Operating system - Windows 7, 8, 10 & 11, MacOS 10.9 and up Software - DinoCapture 2.0 (Windows), DinoXcope (Mac OS) Supported image formats (Windows) - BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX Supported video formats (Windows) - WMV, FLV, SWF Supported image formats (MacOS) - JPEG, PNG Supported video formats (MacOS) - MOV Imaging standards - DirectShow, UVC Wifi - Wireless-ready, requires the WF-10 WiFi streamer (optional) Housing Housing material - Composite/ plastic housing Magnification lock - Yes Cable length - 1.8m Features Special feature - No Measurement - Yes Calibration - Yes Microtouch sensor - Yes ESD safe - No Information Package contents - Microscope, carry pouch, calibration target, user manual
