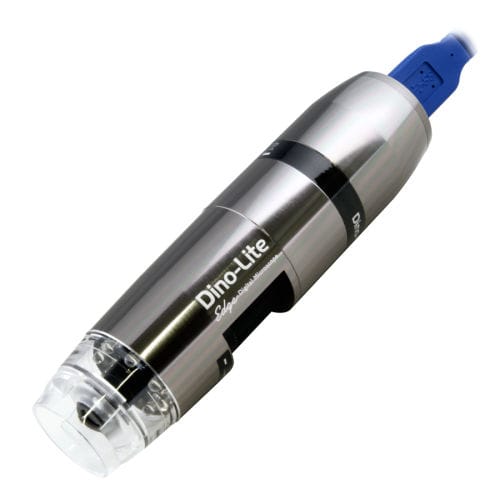

Digital microscope AM73515MT4Alaboratoryhigh-speedUSB
Add to favorites
Compare this product
Characteristics
- Type
- digital
- Technical applications
- laboratory
- Other characteristics
- USB, high-speed
- Magnification
Max.: 470 unit
Min.: 420 unit
- Weight
110 g
(3.9 oz)- Height
121 cm
(47.6 in)
Description
Equipped with a built-in coaxial light controlled via eFLC, AM73515MT4A provides exceptional brightfield imaging for viewing reflective surfaces or more challenging topographies. Thanks to USB 3.0, the AM73515MT4A delivers uncompressed live images for finer details.
Specification
Lighting
Light/ LED type - White LED
Sensor
Resolution - 5.0 Megapixel (2560x1920)
Maximum frame rate - 15 fps at 5 MP, YUY2 45 fps at 1.3 MP, YUY2
Compatibility
Interface - USB 3.0
Operating system - Windows 7/8/10/11 macOS 10.14 or later
Supported image formats (Windows) - DinoCapture 2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
Supported video formats (Windows) - DinoCapture 2.0: WMV, FLV, SWF
Supported image formats (MacOS) - DinoXcope: PNG, JPEG
Supported video formats (MacOS) - DinoXcope: MOV
Housing
Magnification lock - Yes
Cable length - Approx. 1.8 m
Features
Measurement - Yes
Calibration - Yes
Microtouch sensor - Yes
