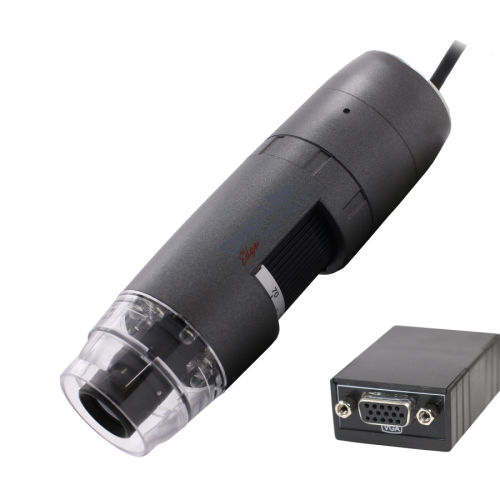

Optical microscope AM5216TF

measuringfor analysisinspection

Designed to provide extra-long working distance, the Dino-Lite Edge D-sub series AM5216TF offers minimum 108mm viewing distance at maximum 70X magnification. Through direct connection to VGA monitors, the AM5216TF can be well-suited for inspection, quality control, failure analysis, etc. The main features of the AM5216TF are: • Extra-long working distance • High optical resolution • D-sub interface • Microtouch button • Interchangeable front caps • And more... Specification Lighting Light/ LED type - White Number of LEDs - 8 LED on/off switchable: - Yes Emission filter - No Polarizer - No Optics Macro zoom - Yes Working distance - Long Lens type - Glass with anti-reflection coating Sensor Sensor type - CMOS Resolution - 1280x720 (720p) Maximum frame rate - 60 fps Compatibility Interface - VGA (D-Sub) Housing Housing material - Composite/ plastic housing Magnification lock - No Features Special feature - No Measurement - No Calibration - No Microtouch sensor - Yes ESD safe - No Information Package contents - Microscope, carry pouch, power adapter, front cover box, user manual
