Opto-digital microscope AF4915ZTL

inspectionmeasuringpolarization

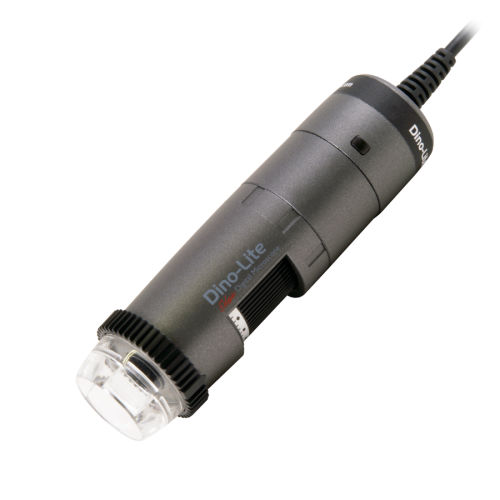

The Dino-Lite AF4915ZTL is part of the Long Working Distance (LWD) series and connects to your device via USB. The AF4915ZTL is Wireless-ready, but requires the (optional) WF-20 to make it a fully wireless solution. The AF4915ZTL is equipped with premium features such as Extended Depth of Field (EDOF), Extended Dynamic Range (EDR), Flexible LED Control (FLC), integrated polarizer, extensive measurement functionality and Automatic Magnification Reading (AMR) for measurement-intensive applications. The main features of the AF4915ZTL are: • Wireless-ready, requires the WF-20 adapter (optional) • 1.3 Megapixel Edge sensor • Adjustable polarizer • Extended Depth of Field (EDOF) • Extended Dynamic Range (EDR) • Automatic Magnification Reading (AMR) • Flexible LED Control (FLC) • And more... Specification Lighting Light/ LED type - White Light/ LED type - Wireless-ready, requires the WF-20 adapter (optional) Number of LEDs - 8 LED on/off switchable: - Yes Infrared filter - IR cut-filter >650 nm Diffuser available - Yes (N3C-D included) Emission filter - No Polarizer - Yes, linear Optics Macro zoom - No Working distance - Long Lens type - Glass with anti-reflection coating Sensor Sensor type - CMOS Resolution - 1.3 Megapixel (1280x1024) Maximum frame rate - 30 fps Compatibility Interface - USB 2.0 Operating system - Windows 7, 8, 10 & 11, MacOS 10.12 and up” Software - DinoCapture 2.0 (Windows), DinoXcope (Mac OS) Supported image formats (Windows) - BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX Supported video formats (Windows) - WMV, FLV, SWF Supported image formats (MacOS) - JPEG, PNG Supported video formats (MacOS) - MOV
