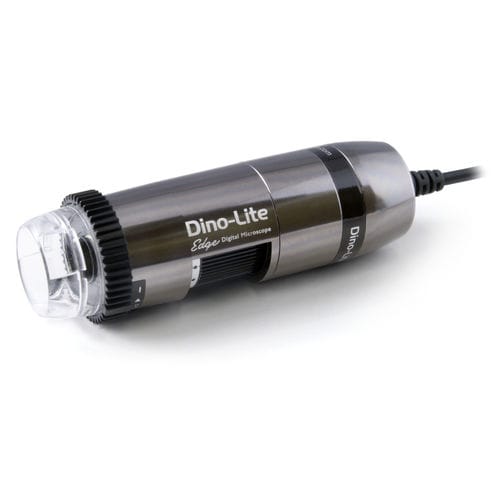

Long working distance microscope AM7915MZTL

infraredmeasuringfor analysis

The AM7915MZTL is part of the Long Working Distance (LWD) range and with its Long Working Distance and magnification range from 10 - 140x, it is suitable for a wide range of applications where extra distance to the object or a larger field of view is required. With the Extended Dynamic Range (EDR) feature, the details of darker or brighter areas within the object can be revealed by stacking images at different exposure levels. The Extended Depth of Field (EDOF) feature automatically stacks images at different focus level to improve the depth of field on rough or uneven surfaces. The AMR function is of particular importance when the measurement functions are frequently used. Because of the built-in polarization filter this model is ideal when working with shiny or reflective objects such as metal, plastic, glass, jewelry, electronics, etc. The main features of the AM7915MZTL are: • 5 Megapixel Edge sensor • Extended Depth of Field (EDOF)* • Extended Dynamic Range (EDR)* • 10-140x Magnification & Long working distance • Automatic Magnification Reading (AMR) • Adjustable polarizer • Flexible LED Control (FLC) Specification Lighting Light/ LED type - White Number of LEDs - 8 LED on/off switchable: - Yes Infrared filter - IR cut-filter >650 nm Diffuser available - Yes (N3C-D included) Emission filter - No Polarizer - Yes, linear Optics Macro zoom - No Working distance - Long Lens type - Glass with anti-reflection coating Sensor Sensor type - CMOS Resolution - 5.0 Megapixel (2592x1944) Maximum frame rate - 30 fps Compatibility Interface - USB 2.0 Operating system - Windows 7, 8, 10 & 11, MacOS 10.9 and up Software - DinoCapture 2.0 (Windows), DinoXcope (Mac OS) Supported image formats (Windows) - BMP,
