Digital microscope AM7115MTF

inspectioncompactUSB

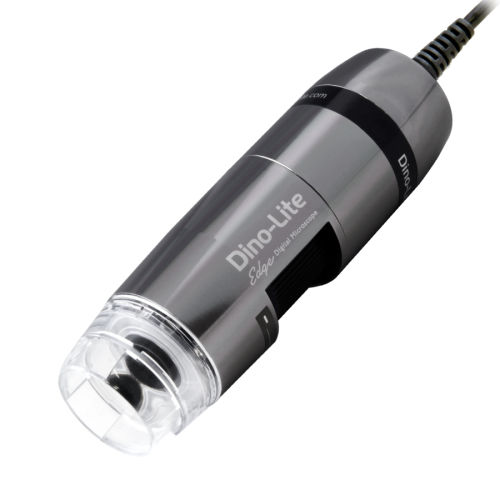

When abundant space between the target and the microscope is a must, use Dino-Lite 5MP AM7115MTF extra-long working distance digital microscope. AM7115MTF offers high resolution images and up to 70x magnification at a 108mm working distance. The superior optics adopted in the Edge series reveals the finest details, answering the needs of the most demanding microscopy applications. Thanks to the low loss MJPEG compression, the advanced CMOS image sensor allows to transmit fluid and crisp image with resolution up to 2592x1944 The main features of the AM7115MTF are: • 5 Megapixel Edge sensor • Aluminum housing • Flexible LED Control (FLC) • Extensive measurement functions • Calibration • Exchangeable front caps Specification Lighting Light/ LED type - White Number of LEDs - 8 LED on/off switchable: - Yes Infrared filter - IR cut-filter >650 nm Diffuser available - Yes (N3C-D included) Emission filter - No Polarizer - No Optics Macro zoom - No Working distance - Standard Lens type - Glass with anti-reflection coating Sensor Sensor type - CMOS Resolution - 5.0 Megapixel (2592x1944) Maximum frame rate - 30 fps Compatibility Interface - USB 2.0 Operating system - Windows 7, 8, 10 & 11, MacOS 10.9 and up Software - DinoCapture 2.0 (Windows), DinoXcope (Mac OS) Supported image formats (Windows) - BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX Supported video formats (Windows) - WMV, FLV, SWF Supported image formats (MacOS) - JPEG, PNG Supported video formats (MacOS) - MOV (max 1.3MP) Imaging standards - DirectShow, UVC Wifi - Wireless-ready, requires the WF-10 WiFi streamer (optional) Housing Housing material - Metal housing Cable length - 1.8m Features Special feature - Flexible LED Control (FLC)
