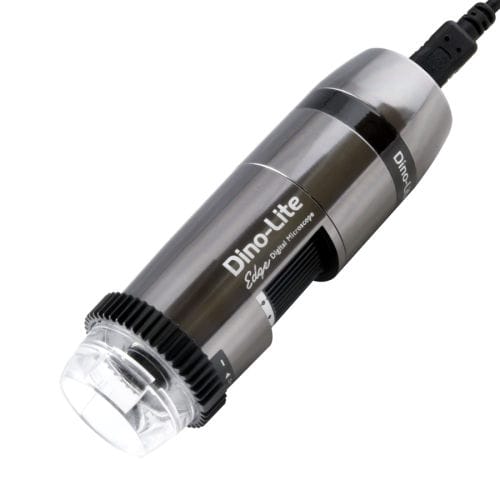

Long working distance microscope AM4917MZTL

opto-digitalfor analysisinspection

The Dino-Lite AM4917MZTL is part of the EDGEPLUS series, a special category within the Long Working Distance (LWD) range. It offers a magnification range of 10-140x with 1.3MP and a USB 2.0 connection at 30fps. It offers superb image quality, clarity and color reproduction in a robust, compact and appealing metal housing. A unique feature within the EDGEPLUS series for the AM4917MZTL model is the possibility to acquire Depth Information. By indicating the variations in focus shifts, you can obtain depth information of grooves, holes, and other types of topographical variations. Please click here for the manual on "how to acquire depth information with the AM4917-models". EDOF allows users to automatically capture multiple images at different depths and automatically combine them into one clear image. EDR automatically captures and combines multiple images at different exposure levels to produce a final image with greater dynamic range. The AMR function automatically detects and displays the magnification of the Dino-Lite. The magnification is displayed within the Dino-Lite software and stored with the captured picture and simplifies the measuring process. Because of the built-in polarization filter this model is ideal when working with shiny or reflective objects such as metal, plastic, glass, jewelry, electronics, etc. The main features of the AM4917MZTL are: • 1.3 Megapixel EDGEPLUS sensor • Depth acquisition • Extended Depth of Field (EDOF) • Extended Dynamic Range (EDR) • Automatic Magnification Reading (AMR) • Flexible LED Control (FLC) • 10-140x Magnification • Long working distance • Adjustable polarizer • And more...
