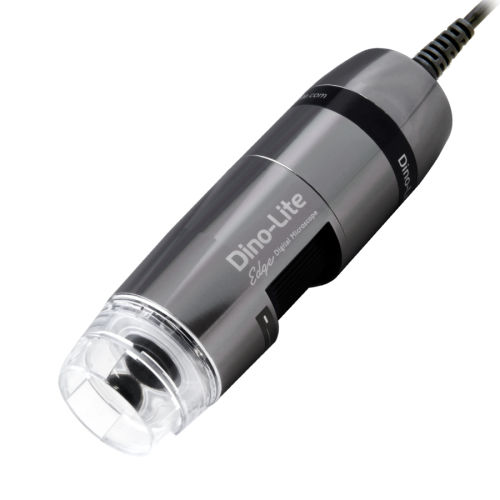

High-magnification microscope AM7515MT8A
inspectionopto-digitalUSB

high-magnification microscope
high-magnification microscope
high-magnification microscope
high-magnification microscope
high-magnification microscope
high-magnification microscope
Add to favorites
Compare this product


Characteristics

Technical applications
inspection
Type
opto-digital
Other characteristics
USB, with coaxial illumination, high-magnification, high-precision
Magnification

Min.: 700 unit

Max.: 900 unit

Description

The AM7515MT8A is a 5MP Dino-Lite Edge Series microscope that has a magnification range of700-900x with built-in coaxial illumination. By using the Flexible LED Control (FLC), this model is capable of switching between or mixing, brightfield and coaxial illumination. The coaxial illumination technique reveals details that are very difficult to see under normal light, for example when inspecting wafer plates, microchips or other microelectronics. The AM7515MT8A includes the Automatic Magnification Reading (AMR) feature which automatically detects and displays the magnification in the included Dino-Lite software.These unique features make the Dino-Lite AM7515MT8A a great inspection tool for material analysis, electronics inspection, or any similar application that requires high magnification, coaxial illumination, versatility and mobility. The Dino-Lite AM7515MT8A is bundled with the user-friendly DinoCapture 2.0 software for Windows. For this model it includes functions such as Automatic Magnification Reading (AMR), Flexible LED Control (FLC), calibration, measurement, capturing & annotating images, and recording video. When focusing at such high magnification it is recommended to use a high-precision stand. The Dino-Lite RK-10A for example is a great add-on, it is a sturdy and stable high-end stand solution constructed of resilient stainless steel and lightweight aluminum and offers a very precise fine-focus adjustment. (*At the moment this model only functions under Windows OS)
