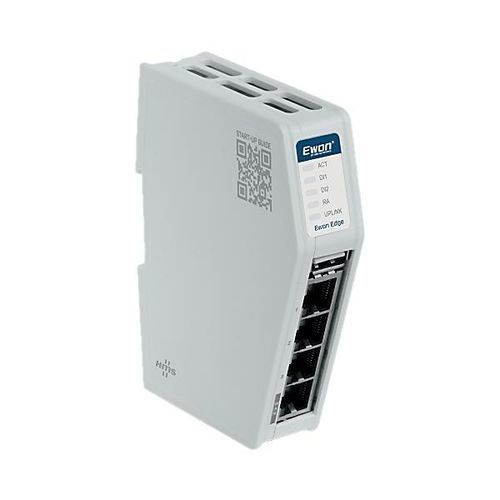

Communication gateway EE410

securityindustrialIoT

Product overview
Ewon Edge 410 is an industrial gateway built for wired fleet deployments, delivering reliable Ethernet connectivity, cloud integration and real-time machine insights for secure remote access and centralized diagnostics.

Features and benefits

• Access control and user management: define user roles and permissions in Ewon Cloud, with secure authentication and audit trails.
• Security and traffic governance: gateway-level monitoring and logging to detect anomalies and enforce segmented communications.
• Unified monitoring and diagnostics: centralizes event logs, debug data and network captures for remote troubleshooting without physical machine access.
• Regular firmware updates: maintained platform with security and feature updates.
• Operator-focused interface: industrial features exposed through an intuitive management UI.
• Scalable deployment: subscription and platform scaling to support additional sites and machines.

Related software
Ewon Edge integrates with Ewon Cloud to provide a unified platform combining industrial gateways and cloud services for simplified fleet management, secure remote access and analytics.

Product description
Item number: EE410. Industrial gateway for fleet-wide troubleshooting and remote access over wired Ethernet. Designed for reliable wired connectivity, cloud integration and real-time machine insights.

Technical specifications

• Item Number: EE410
• Model: Ewon Edge 410
• Brand: Ewon
• Country of Origin: Belgium
• Product Lifecycle State: Active
• Model Code: 01003
• HS Code: 8517620000
• Net Width: 25 mm
• Net Height: 120 mm
• Net Depth: 151 mm
• Net Weight: 151 g
• Packed Width: 39 mm
• Packed Height: 138 mm
• Packed Depth: 178 mm
• Packed Weight: 217 g
• Mounting: DIN rail mount (bracket included)
• Input Voltage: 17 - 24 Vdc ±20% (LPS)
• Power Connector: 8-pole
• Operating Temperature: -25°C to +60°C
• Storage Temperature: -30°C to +70°C
• Relative Humidity: 10 to 95% non-condensing
• Housing Materials: Plastic
• Packaging Material: Cardboard
• Warranty: 3 years
• Internal Storage: 10 GB
• RAM: 2 GB
• WAN/LAN: 4 × RJ45 1 GbE (3 LAN ports and 1 WAN port)
• I/O: 2× digital input 0–24 Vdc (1.5 kVdc isolation); 1× relay output max 500 mA (1.5 kVdc isolation)
• Contains Battery: No
• VPN Security: Encrypted communications, LAN/WAN segregation, separate channels for remote access, data and configuration, Secure Element for keys
• Router Features: Proxy, NAT, IP filtering, port forwarding, NAT 1:1, multiple subnets
• VPN: OpenVPN supported (UDP 1194 or TCP 443)
• Protection Class: IPX0
• UL Information: E350576
• Certifications: KC, RCM, CE (RED/EMC), FCC, IC, UKCA, cURus; Japan compliance and other regional marks
