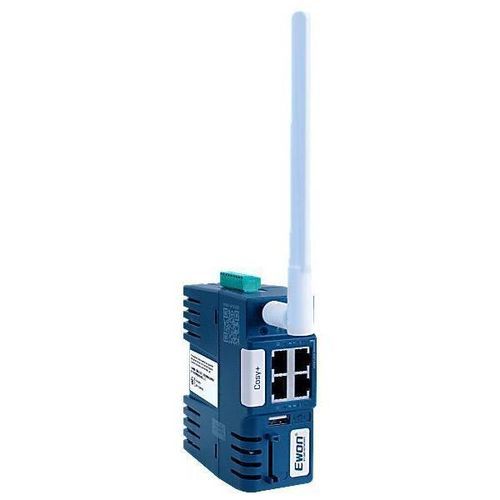

Data communication router EC7133N_00MA

cellularcellular CPE3G

Product overview
The Ewon Cosy+ gateway establishes a secure VPN connection between the machine (PLC, HMI, or other devices) and the remote engineer via the Talk2m industrial cloud. It provides outbound, non-intrusive remote access with multiple connectivity options including 4G, enabling fast deployment and centralized connectivity management without advanced IT skills.

Features and benefits

• Reliable remote connectivity in varied conditions: multiple WAN options and automatic fallback to 3G for continuous access.
• Improve machine uptime and productivity: secure remote diagnostics and troubleshooting reduce downtime.
• Cost and time savings: avoid unnecessary site visits and optimize service interventions.
• Hardware-level security: Secure Element, ISO 27001 conformity, LAN segregation and strong encryption.
• Easy deployment: web-based configuration with setup wizards; suitable for users without advanced IT expertise.
• Centralized management: manage devices and connections through the Talk2m industrial cloud service.
• Scalable solution: add devices and users as required to adapt to operational needs.
• Global connectivity: supports worldwide bands and benefits from Talk2m global infrastructure and SLA.

Contents of delivery

• Industrial gateway in a plastic housing
• Power connector
• SIM tray
• Legal references (paper)
• Branded cardboard box
• Not included: Antenna

Technical specifications

• Item number: EC7133N_00MA
• Brand: Ewon
• Model code: O4902
• Predecessor: EC6133F
• HS Code: 8517699000
• Country of Origin: Belgium
• Net width: 42 mm
• Net height: 117 mm
• Net depth: 105 mm
• Net weight: 225 g
• Packed width: 168 mm
• Packed height: 45 mm
• Packed depth: 148 mm
• Packed weight: 289.5 g
• Mounting: DIN rail mount (bracket included), Wall mount
• Input voltage: 12-24 VDC +/-20%, LPS
• Power connector: 9-pole
• Operating temperature: -25 °C to +60 °C
• Storage temperature: -30 °C to +70 °C
• Housing materials: Plastic
• Packaging material: Cardboard
• Warranty: 3 years
• Contains battery: Yes
• SD Card Slot: SD
• WAN specification: up to 3 ports, 10/100 Mb Ethernet
• LAN specification: up to 4 ports, 10/100 Mb Ethernet
• Connectors / I/O: 1x DO open drain (MOSFET) 200 mA; isolation 1.5 kV; 2x DI digital inputs on the green connector
• VPN security: communications fully encrypted using SSL/TLS; authentication using x509 SSL certificates; end-to-end traffic encryption with strong symmetric and asymmetric algorithms
• Router features: IP filtering, IP forwarding, NAT, Port forwarding, Proxy, Routing table, DHCP client/server
• VPN protocol: OpenVPN (SSL) UDP or TCP
• Frequencies & Bands: 4G: B1, B3, B8, B18, B19, B26, B41; 3G: B1, B6, B8, B19 with automatic fallback to 3G
• Antenna connector: SMA
• Antenna: Not included
• Product certifications: UL
• Other certification: Giteki T
• PTCRB: No
• Environment: tested to IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-30
• Vibration and shock: tested to IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-6
• Configuration: Web-based configuration via embedded web interface with setup wizards; basic authentication (login/password) and session control
