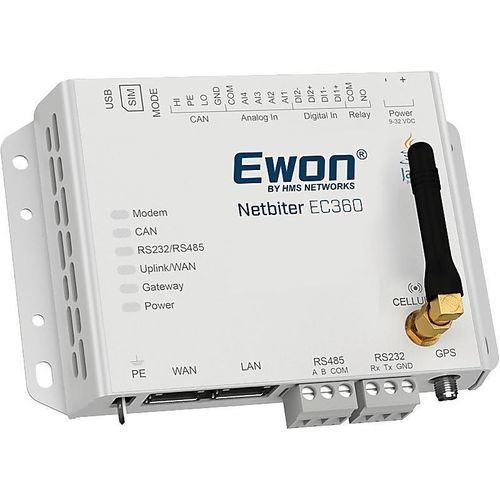

Communication gateway Netbiter EC360

industrialtelemetryIoT

Overview
The Netbiter EC360 is an industrial remote gateway that connects field equipment to the Argos cloud for continuous monitoring, alarms and remote control via cellular (4G) or Ethernet connections. It supports secure tunneling for configuration and troubleshooting of on-site devices.

Features and benefits

• 24/7 remote monitoring and control — track performance, receive alarms and manage equipment from a web browser or mobile device.
• Secure access — encrypted data transmission over cellular network or Ethernet to the Argos cloud hosting service.
• Alarm handling — push notifications, email or SMS with access to current and historical alarm records.
• Wide protocol support — Modbus (TCP/RTU), EtherNet/IP, CAN (J1939) and IO for direct connection to field assets.
• Project and user management — define projects, user roles and access privileges.
• Scalable deployment — suitable for single-site installations and large multi-user projects.
• Remote configuration and debugging — secure tunnel to configure, program or troubleshoot industrial devices in the field.

Related software
Argos IoT cloud provides hosting and management services for remote monitoring and control, including data storage, visualization and alarm management for Netbiter gateways.

Contents of delivery

• Gateway
• DIN rail mounting kit
• Installation guide
• Activation information

Notes

• Power supply not included.
• Designed for continuous operation in industrial environments.

Technical specifications

• Item number: NB1023
• Model: Netbiter EC360
• Brand: Ewon
• Country of origin: Sweden
• HS Code: 8517699000
• Net dimensions (W×H×D): 130 × 25 × 100 mm
• Net weight: 480 g
• Packed dimensions (W×H×D): 135 × 59 × 173 mm
• Packed weight: 495 g
• Mounting: Wall mount, DIN rail mount (bracket included)
• Input voltage: 9–32 V
• Power consumption: 4.5 W
• Operating temperature: -40 °C to 65 °C
• Storage temperature: -45 °C to 85 °C
• Housing material: Metal housing
• Packaging material: Cardboard
• Warranty: 3 years
• Configuration: Configured from Argos
• GPS supported: Yes
• Frequencies & bands: B2 (1900 PCS), B4 (AWS-1), B5 (850), B17 (700 b)
• Cellular standard: 4G
• Antenna connector: SMA (antenna not included)
• Data acquisition protocols: Modbus-TCP, Modbus RTU, J1939, SNTP, IO
• Connectors / I/O: Power, RS485, RS232, IO
• Battery: No
• SD card slot: SD
• Product certifications & standards: UL, IC, FCC, PTCRB; WEEE category: IT and telecommunications equipment
