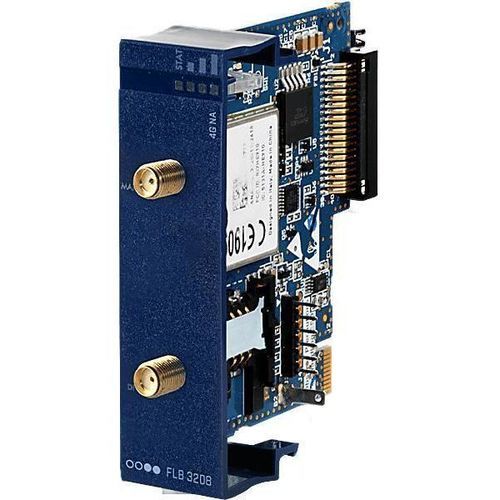

Data modem card FLB3208_00H

cellular3G4G

Tagline
Interchangeable 4G extension card for North America, certified for hazardous locations (Class 1 Division 2).

Overview
The Extension Card 4G NA Class 1 Div 2 (FLB3208_00H) is a modular cellular modem card for the Ewon Flexy platform, delivering North American 4G connectivity with additional certification for hazardous environments. Used with a Flexy base unit, it enables remote access, monitoring and data collection from PLCs, sensors and other devices for analysis and predictive maintenance. Supports a wide range of industrial protocols including OPC UA.

Item number
FLB3208_00H

Features and benefits

• Certified for hazardous locations: Class 1 Division 2 compliance for use in environments with potential flammable atmospheres (oil & gas, chemical plants, etc.).
• Modular upgrade: Swapable extension cards allow you to update communication capabilities without replacing the Flexy base unit.

Certifications & Standards (summary)

• UL/CSA: Meets UL 121201 (9th Ed.) and CSA C22.2 NO. 213-17 for Hazardous Locations Class 1 Division 2.
• Network compatibility: Works with AT&T and T-Mobile networks (not compatible with Verizon).
• Other certifications: PTCRB, UL, KC, RCM, FCC, IC.

Wireless & Cellular

• Frequencies & Bands: 4G: B71 (600MHz), B12/B13/B14 (700MHz), B5 (850MHz), B4/B66 (1700MHz), B2 (1900MHz). 3G: B5, B4, B2.
• Carrier compatibility: AT&T and T-Mobile supported; not compatible with Verizon.
• Firmware requirement: Flexy base unit firmware 14.8s0 or higher required for modem extension cards (FLB3208, FLB320A, FLB3209, FLB3271).

Key product description points

• Enables remote connectivity and secure access to machines via Talk2m industrial cloud.
• Collects KPI and operational data from PLCs, sensors and third-party devices.
• Supports industrial protocols including OPC UA for integration into automation systems.

Physical & Packaging

• Net Width: 22 mm
• Net Height: 79 mm
• Net Depth: 82 mm
• Net Weight: 46 g
• Packed Width: 102 mm
• Packed Height: 30 mm
• Packed Depth: 95 mm
• Packed Weight: 68 g
• Contains Battery: No

Identification & status

• Item Number: FLB3208_00H
• Brand: Ewon
• Country of Origin: Belgium
• HS Code: 8517790000

Safety & Security

• Safety standards: EN IEC 62368-1:2020 + A11:2020; UL 62368-1 Third Edition; CAN/CSA C22.2 No. 62368-1:19; J62368-1 (national differences).

Related software
Compatible with Talk2m industrial cloud for remote access, secure data transfer and performance monitoring.

Technical specifications

• Item number: FLB3208_00H
• Denomination: Ewon Flexy extension card
• Brand: Ewon
• Net Width: 22 mm
• Net Height: 79 mm
• Net Depth: 82 mm
• Net Weight: 46 g
• Packed Width: 102 mm
• Packed Height: 30 mm
• Packed Depth: 95 mm
• Packed Weight: 68 g
• Warranty: 3 years
• Country of Origin: Belgium
• HS Code: 8517790000
• Certifications: UL, KC, RCM, PTCRB, FCC, IC
• UL/CSA Details: UL 121201 and CSA C22.2 NO. 213-17 for Hazardous Locations Class 1 Division 2
• Cellular Bands (4G/3G): 4G B71, B12, B13, B14, B5, B4, B66, B2; 3G B5, B4, B2
• Carrier compatibility: AT&T and T-Mobile; Not compatible with Verizon
• Firmware requirement: Flexy base unit firmware version 14.8s0 or higher
• Contains Battery: No
