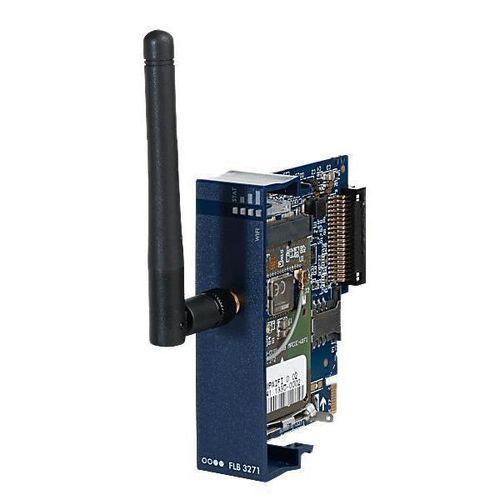

Wireless modem card FLB3271_00

WiFi2.4 GHzfor M2M application

Short description
Interchangeable WiFi extension card designed to add WLAN connectivity and backup Internet access to Ewon Flexy gateways.

Product overview

• This extension card provides WiFi (WLAN) connectivity to Ewon Flexy devices, enabling connection via nearby access points without using the factory LAN.
• Supports industrial M2M and remote monitoring workflows by offering an additional or backup Internet link.
• Designed for Flexy 10x and 20x series and Flexy 205; some modem cards require Flexy firmware 14.8s0 or later.

Features and benefits

• Modular extension concept: enables flexible communication options as site requirements evolve.
• Allows secure segregation from factory LAN when external WiFi access is available.
• Provides redundant Internet connectivity for remote diagnostics, data collection and cloud services.

Compatibility & requirements

• Compatible with Ewon Flexy 10x and 20x series and Flexy 205; check firmware requirements for specific modem cards.
• WiFi standards: IEEE 802.11 b/g/n (single stream).
• Channels supported: 1–11.

Content of delivery

• Electronic extension board fitted into a plastic front plate, packed in an ESD bag sealed with a yellow sticker.
• WIFI antenna (included).
• Paper legal references.
• Cardboard box.

What is not included

• Extended WIFI cable is not included.

Wireless and hardware notes

• Antenna connector: RP‑SMA (female). Antenna supplied.
• Frequencies / Channels: Channels 1–11.
• Some modem extension cards (FLB3208, FLB320A, FLB3209, FLB3271) require Flexy base unit firmware 14.8s0 or higher for full support.

Certifications & standards (high level)

• Product certifications: CE, UL, RCM, FCC, IC, UKCA.
• Other approvals: Giteki (Japan), Russia FSS Notification, WPC (India), Pakistan.
• PTCRB: No.
• Environmental testing: Tested per IEC 60068 series for cold, dry heat, temperature change and cyclic damp heat.
• Vibration & shock: Tested per IEC 60068‑2‑27, IEC 60068‑2‑64, IEC 60068‑2‑6.
• WEEE category: IT and telecommunications equipment.

Related software

• Typically used with Talk2M industrial cloud for remote connectivity and gateway management.

Technical specifications

• Item number: FLB3271_00
• Commercial name: Ewon Flexy extension card - WiFi
• Model code: 01201
• Brand: Ewon
• Country of origin: Belgium
• HS Code: 8517790000
• Net dimensions (W x H x D): 22 mm x 79 mm x 82 mm
• Net weight: 53 g
• Packed dimensions (W x H x D): 102 mm x 30 mm x 95 mm
• Packed weight: 74.5 g
• Operating temperature: -25 °C to +60 °C
• Storage temperature: -30 °C to +70 °C
• Relative humidity: 10 to 95% RH (non‑condensing)
• Housing materials: Plastic
• Packaging material: Cardboard
• Warranty: 3 years
• Antenna connector: RP‑SMA (female)
• Antenna: Included
• WiFi standards: IEEE 802.11 b/g/n (single stream)
• Frequencies / Channels: Channels 1–11
• Contains battery: No
