Wireless modem card FLB320A_00

telecommunicationsdatacellular

Product overview

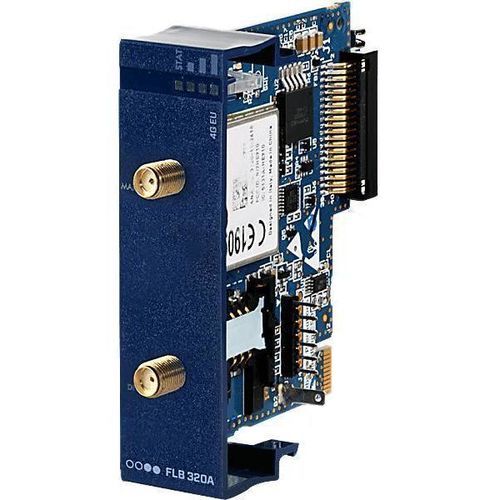

This interchangeable 4G LTE extension card (FLB320A_00, model 04801) adds cellular connectivity to Ewon Flexy gateways for field sites without wired internet. It connects to the Talk2M cloud via a SIM card with a data plan and provides secure VPN-based remote access for industrial and SCADA applications, without the need for a fixed public IP address.

Features and benefits

• Modular extension card to upgrade Flexy gateways to 4G LTE.
• Enables reliable cellular connectivity where wired networks are unavailable.
• Secure VPN remote access for industrial/SCADA systems via Talk2M.
• Automatic fallback to 3G for extended coverage.

Compatibility

• Compatible with Ewon Flexy 10x series.
• Compatible with Ewon Flexy 20x series.
• Compatible with Ewon Flexy 205.

Wireless features

• 4G bands: B1, B3, B7, B8, B20, B28A.
• 3G bands: B1, B3, B8; automatic fallback to 3G.
• Antenna connector: SMA (SMA-F female).
• Antenna: Not included (sold separately).

Contents of delivery
Includes the electronic extension board mounted in a plastic front plate, a plastic cap on the DIV SMA connector, ESD plastic bag sealed with a yellow sticker, legal documents (paper), and a cardboard box.

Packaging and physical dimensions
Net Width (mm): 22 mm
Net Height (mm): 79 mm
Net Depth (mm): 82 mm
Net Weight (g): 46 g
Packed Width (mm): 102 mm
Packed Height (mm): 30 mm
Packed Depth (mm): 95 mm
Packed Weight (g): 68 g
Housing materials: Plastic
Packaging material: Cardboard

Environmental & mechanical
Operating temperature: -25 °C to +60 °C
Storage temperature: -30 °C to +70 °C
Relative humidity: 10 to 95% (non-condensing)
Vibration and shock tested to IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-6
Temperature and humidity tests per IEC 60068 series
WEEE category: IT and telecommunications equipment

Identification & product status
Item number: FLB320A_00
Model code: 04801
HS Code: 8517790000
Predecessor(s): FLB3204_00, FLB3202_01
Country of origin: Romania
Brand: Ewon
Dual usage: No

Safety & certifications
Product certifications: CE, UL, RCM, UKCA
Safety standards: EN IEC 62368-1:2020 + A11:2020; UL 62368-1; CAN/CSA C22.2 No. 62368-1; J62368-1

Physical connectors & battery
Connectors / I/O: 2x antenna connectors — Main: SMA-F female; Diversity: SMA-F female
Contains battery: No

Technical specifications

• Type: Interchangeable 4G LTE modem extension card for Ewon Flexy (Europe)
• Frequencies & bands: 4G B1, B3, B7, B8, B20, B28A; 3G B1, B3, B8
• Antenna connector: SMA
• Antenna: Not included
• Net dimensions: 22 x 79 x 82 mm
• Net weight: 46 g
• Packed dimensions: 102 x 30 x 95 mm
• Packed weight: 68 g
• Operating temp: -25 °C to +60 °C
• Storage temp: -30 °C to +70 °C
• Relative humidity: 10–95% (non-condensing)
• Housing material: Plastic
• Packaging: Cardboard
• Warranty: 3 years
• Included in delivery: extension board, plastic front plate, plastic cap on DIV SMA connector, ESD bag sealed with yellow sticker, legal paper references, cardboard box
• Not included: Antenna
• Certifications: CE, UL, RCM, UKCA
• Item number: FLB320A_00
• Model code: 04801
• Country of origin: Romania
