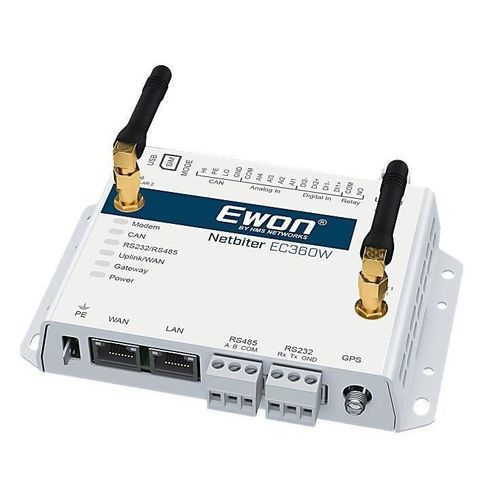

Communication gateway Netbiter EC360W

telemetryIoTEthernet

Overview
Ewon Netbiter enables remote monitoring and control of field equipment via the Argos cloud. The EC360W gateway supports encrypted communications over cellular (4G) or Ethernet and provides secure remote access, alarm handling and project/user management for single-site or multi-user deployments.

Features and benefits

• 24/7 remote management of field equipment: monitor performance, receive alarms and configure devices remotely from a web browser or smartphone.
• Secure, encrypted connection to the Argos cloud for data exchange and remote access.
• Alarm delivery via app push, email or SMS with access to current and historical alarm records.
• Easy integration with field assets: supports Modbus (serial and TCP), EtherNet/IP and CAN interfaces.
• Project and user management controls for role-based access and multi-user projects.
• Scalable deployment for single installations up to large multi-site projects.
• Secure remote tunnel access for device configuration, programming and troubleshooting.

Related software
Argos IoT cloud (Argos) is the cloud service used with Netbiter gateways for device management, data logging and alarm handling. Argos provides secure cloud storage and remote management functions for operating equipment remotely.

Technical specifications

• Content of Delivery: Gateway, DIN Rail Mounting Kit, Installation Guide, Activation Information
• Not Included: Power supply, Antenna
• Net Width: 130 mm
• Net Height: 25 mm
• Net Depth: 100 mm
• Net Weight: 480 g
• Packed Width: 135 mm
• Packed Height: 59 mm
• Packed Depth: 173 mm
• Packed Weight: 485 g
• Mounting: Wall mount, DIN rail mount (bracket included)
• Input Voltage: 9 - 32 V
• Power Consumption: 4.5 W
• Operating Temperature: -40 °C to 65 °C
• Storage Temperature: -45 °C to 85 °C
• Housing Materials: Metal housing
• Packaging Material: Cardboard
• Warranty: 3 years
• Configuration: Configured from Argos
• Ports: 1 x RS232, 1 x RS485
• Serial Baud Rate: 9600 - 115200 bit/s
• Max Stations (serial): 1
• Connector: 3-Pin Connector
• Max Nodes: 1
• PTCRB: Yes
• WEEE Category: IT and telecommunications equipment
• GPS Supported: Yes
• Frequencies & Bands: FDD-LTE bands 1,2,3,4,5,7,8,12,13,18,19,20,26,28,66; TD-LTE bands 38,40,41; UMTS (WCDMA/FDD) bands 1,2,4,5,6,8,19
• Cellular Standards: 4G
• Antenna Connector: SMA
• Item Number: NB1024
• Export Control Classification Number (ECCN): EAR99
• Brand: Ewon
• Data Acquisition Protocols: IO, J1939, Modbus RTU, Modbus-TCP
• Alarms: Multi-condition triggering; on-device automatic actions; notifications via app, email or SMS; alarm history available
• Data Publishing Protocols: HTTPS, Modbus, MQTT
• Data Logging: Secured data logging to Argos
• CANopen: Mode - CANopen Master; Baud Rates - 50,125,250,500,1000; Supported - SDO Client, NMT Master, HB Consumer; Slaves supported - 1
• Modbus-TCP: Mode - Master/Client; Transparent Modbus RTU/TCP Gateway (up to 10 clients); Bandwidth - 10/100 Mbit/s; Servers - 1; Supported functions - 1,2,3,4,5,6,15,16,22,23
• Modbus-RTU: Mode - Master/Client; Up to 30 slaves in transparent/daisy chain mode; Baud Rate - 1200 - 115200 bps; Supported functions - 1,2,3,4,5,6,15,16,22,23
• Physical Connectors / I/O: Built-in I/O: 4 analog inputs (4-20 mA, 0-10 V), PT100; Relay; Power connector refs (BCP-508-2); RS485 (BCP-508-3), RS232 (BCP-508-3), CAN (BCP-381-15); Relay (BCP-381-15); Analog-IN x4 (BCP-381-15); Digital-IN x2 (BCP-381-15); Ethernet (WAN and LAN); USB (Micro)
• Contains Battery: No
• SD Card Slot: SD
