Industrial gateway Netbiter EC310

communicationsecuritytelemetry

Overview
Remote communication gateway exchanging data over Ethernet to the Netbiter Argos IIoT platform. Ewon Netbiter enables remote monitoring and control of field equipment 24/7 when connected to the Argos cloud service.

Features and benefits

• 24/7 remote management of field equipment — monitor performance, receive alarms and manage equipment remotely.
• Instant, secure access from any web browser via encrypted communication to the Argos cloud service.
• Alarms and notifications for events and conditions to ensure prompt action and access to current and historical alarm records.
• Easy connectivity — supports Modbus (serial or Ethernet), EtherNet/IP and CAN for secure connection to field assets.
• Control systems and user access privileges — project and user management features for multi-user projects.
• Designed for scalability — suitable for single installations or large multi-site projects.
• Backed by hosting and security features with redundancy for stable and secure cloud access.
• Remote access to field equipment via a secure tunnel for configuration, programming or debugging of industrial devices.

Product description

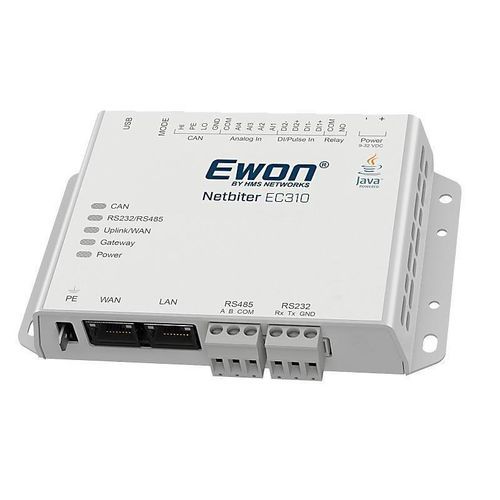

The Netbiter EC310 is a rugged remote gateway designed for industrial remote monitoring and control. It connects field equipment to the Argos cloud, enabling continuous remote supervision and secure two-way communications for configuration and troubleshooting. The gateway supports multiple industrial protocols and physical interfaces for flexible integration into existing systems. It is supplied with mounting hardware and installation documentation; power supply is not included.

Technical specifications

• Item number: NB1007-C
• Commercial designation (model): Netbiter EC310
• Brand: Ewon
• Country of origin: Sweden
• HS Code: 8517620000
• Product certifications: CE, UL, FCC, IC
• Content of delivery: Gateway, DIN rail mounting kit, installation guide, activation information
• Not included (in delivery): Power supply
• Net dimensions (W x H x D): 130 mm x 25 mm x 100 mm
• Net weight: 450 g
• Packed dimensions (W x H x D): 135 mm x 59 mm x 173 mm
• Packed weight: 480 g
• Mounting: Wall mount, DIN rail mount (bracket included)
• Input voltage: 9 - 32 V
• Power consumption: 2.5 W
• Operating temperature: -40 °C to 65 °C
• Storage temperature: -45 °C to 85 °C
• Housing materials: Metal housing
• Packaging material: Cardboard
• Warranty: 3 years
• Configuration: Configured from Argos
• Ports: 1 x RS232, 1 x RS485, CAN, Ethernet (WAN and LAN), USB (Micro), Relay, Analog-IN x4, Digital-IN x2, Power connector
• Connectors detail (examples listed on product): Power (BCP-508-2), RS485 (BCP-508-3), RS232 (BCP-508-3), CAN (BCP-381-15), Relay (BCP-381-15), Analog-IN x4 (BCP-381-15), Digital-IN x2 (BCP-381-15), Ethernet (WAN and LAN), USB (Micro)
• SD Card slot: SD
• Contains battery: No
• Serial features: Baud rate 9600 - 115200 bit/s; Max stations: 1; Connector: 3-Pin; Max nodes: 1
• CANopen features: CANopen Mode: CANopen Master; Baud rates: 50, 125, 250, 500, 1000; Supported functionality: SDO Client, NMT Master, HB Consumer; CANopen No. Of Slaves: 1
• Modbus-TCP features: Mode: Master / Client
• Modbus-RTU features: Mode: Master / Client
• GPS supported: No
