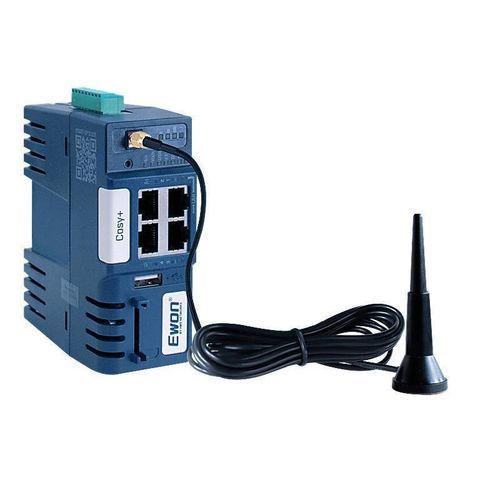

Wireless communication router EC7133K_01MA

datacellular4G

Short description
Industrial VPN gateway providing secure remote access to machines and controllers via the Talk2m cloud service.

Product overview
The Ewon Cosy+ establishes an authenticated, encrypted VPN between on-site equipment (PLC, HMI, HMIs or other devices) and remote engineers. Connections use the Talk2m industrial cloud with outbound, non-intrusive tunnels to simplify deployment without changes to the machine network.

Available variants

• Wi-Fi 4
• 4G NA (this variant)
• 4G JP
• Ethernet
• 4G EU
• 4G APAC

Features and benefits

• Multiple connectivity options (4G, Ethernet, Wi‑Fi) for reliable remote access in varied deployments.
• Reduce on-site interventions and optimize maintenance costs through remote diagnostics and troubleshooting.
• Secure communications: hardware Secure Element, SSL/TLS, x509 certificate authentication and end-to-end encryption.
• Simple setup and web-based configuration with setup wizards; works with standard IT policies thanks to outbound connections.
• Centralized device management via Talk2m industrial cloud for scalable fleet monitoring and user administration.
• Designed for industrial environments with validated temperature, vibration and shock tests.

Certifications & Standards
Network compatibility: AT&T and T‑Mobile compatible (not compatible with Verizon).
PTCRB: Yes.
Product certifications: UL, PTCRB, FCC, IC.
Environmental tests: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-30.
Vibration and shock: IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-6.
WEEE Category: IT and telecommunications equipment.

General

• Delivery: Antenna not included.
• Dimensions (net): 42 x 117 x 105 mm.
• Net weight: 223.5 g; Packed weight: 289 g.
• Mounting: DIN-rail (bracket included) or wall mount.
• Input voltage: 12–24 VDC +/-20%, LPS. Power connector: 9-pole.
• Operating temperature: -25 °C to +60 °C. Storage temperature: -30 °C to +70 °C.
• Housing: Plastic. Packaging: Cardboard.
• Warranty: 3 years.
• Configuration: Web-based embedded interface with authentication and session control.

Physical & Connectivity features

• WAN: up to 3x 10/100 Mb Ethernet ports.
• LAN: up to 4x 10/100 Mb Ethernet ports.
• I/O: 1x DO (open drain MOSFET 200 mA, 1.5 kV isolation), 2x DI (green connector).
• Contains battery; SD card slot present.

Wireless Features
Cellular bands: 4G B2/B4/B5/B12/B13/B14/B66/B71; 3G B2/B5 with automatic fallback to 3G. Antenna connector: SMA. Antenna not included.

Security & Router features

• VPN: OpenVPN (SSL UDP or TCP). Communications encrypted using SSL/TLS; x509 certificate-based authentication.
• Router functions: IP filtering, NAT, port forwarding, proxy, routing table, DHCP client/server.

Identification & product info

• Item number: EC7133K_01MA.
• Predecessor: EC6133H_00MA.
• Country of Origin: Lithuania.
• Brand: Ewon.
• HS Code: 8517699000.

Technical specifications

• Brand: Ewon.
• Model family: Cosy+.
• Product title: Ewon Cosy+ 4G NA.
• Power: 12–24 VDC +/-20%, LPS; 9-pole power connector.
• Dimensions (net): 42 x 117 x 105 mm. Net weight: 223.5 g.
• Operating temp: -25 °C to +60 °C. Storage temp: -30 °C to +70 °C.
• Mounting: DIN-rail or wall mount. Housing: Plastic.
• Security: Secure Element, ISO 27001 practices, SSL/TLS, x509 certificates.
• VPN: OpenVPN (SSL UDP/TCP).
• Certifications: UL, PTCRB, FCC, IC; AT&T and T‑Mobile compatibility.
• Warranty: 3 years.
