Communication gateway EC7133J_00MA

securityindustrialtelemetry

Short description

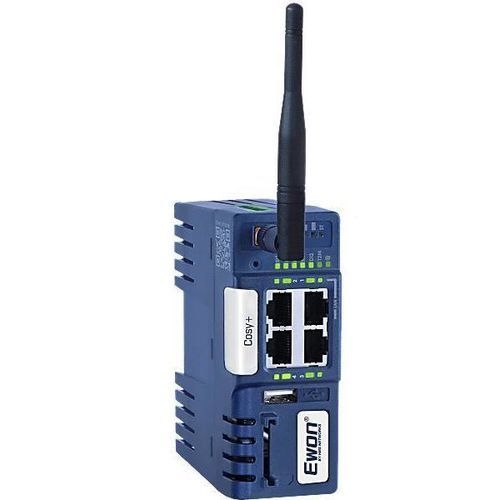

The Ewon Cosy+ WiFi is an industrial VPN gateway that provides secure remote access and management for machines (PLC, HMI and other automation devices) via the Talk2m industrial cloud. It connects local machine networks to remote engineers through encrypted VPN tunnels and supports multiple connectivity modes for flexible deployments.

Key features and benefits

• Multiple connectivity options (Wi‑Fi, Ethernet, cellular variants available) for adaptable deployments.
• Remote access to PLCs and HMIs to reduce on-site interventions and speed up troubleshooting.
• Secure communications with hardware Secure Element, SSL/TLS and x.509 authentication; ISO 27001 certified.
• Non-intrusive outbound connections and web-based setup to simplify installation and minimize IT overhead.
• Centralized device and connectivity management using the Talk2m industrial cloud service.
• Scalable user and device management to support growing installations.
• Global connectivity backed by Talk2m infrastructure and extended SLA options.

Available variants

• Wi‑Fi 4 — Item number EC7133J_00MA
• 4G NA — Item number EC7133K_01MA
• 4G JP — Item number EC7133N_00MA
• Ethernet — Item number EC71330_00MA
• 4G EU — Item number EC7133L_00MA
• 4G APAC — Item number EC7133M_00MA

Related software
Talk2m industrial cloud provides secure global connectivity, remote session management and centralized configuration for Ewon gateways.

Technical specifications

• Item Number: EC7133J_00MA
• Brand: Ewon
• Predecessor: EC6133C
• HS Code: 8517699000
• Product Certifications: CE, RCM, PTCRB, FCC, IC, UKCA
• UL/EN certifications: EN 62368-1:2020+A11:2020; J62368-1(2023); SASO-IEC 62368-1:2020; AS/NZS 62368.1:2022; CSA/UL 62368-1:2019
• Other certification: Giteki T; PTCRB: Yes
• Environmental tests: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-30
• Vibration & shock: IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-6
• WEEE Category: IT and telecommunications equipment
• Net Width: 42 mm
• Net Height: 117 mm
• Net Depth: 105 mm
• Net Weight: 217 g
• Packed Width: 168 mm
• Packed Height: 45 mm
• Packed Depth: 148 mm
• Packed Weight: 281 g
• Mounting: DIN rail (bracket included), wall mount
• Input Voltage: 12-24 VDC ±20%, LPS
• Power Connector: 9-pole
• Operating Temperature: -25 °C to +60 °C
• Storage Temperature: -30 °C to +70 °C
• Relative Humidity: 10 to 95% (non-condensing)
• Housing Materials: Plastic
• Packaging Material: Cardboard
• Warranty: 3 years
• PLC Compatibility: Rockwell Automation/Allen Bradley, Siemens, Schneider Electric, Mitsubishi Electric, Vipa, Omron, Hitachi, Keyence, Yokogawa
• Configuration: Web-based interface with setup wizards, basic authentication and session control
• Wireless security: Client WPA/WPA2/WEP; Access Point WPA2
• Wi‑Fi Standards: IEEE 802.11 a/b/g/n, single stream, dual-band 2.4 / 5 GHz
• Frequencies & bands: Client mode 2.4 GHz (Channels 1–13) and 5 GHz; AP mode 2.4 GHz (Channels 1–11)
• Antenna: RP-SMA connector; antenna included
• WAN: up to 3 × 10/100 Mb Ethernet ports
• LAN: up to 4 × 10/100 Mb Ethernet ports
• Connectors / I/O: 1× DO open drain (MOSFET) 200 mA; 2× DI digital inputs (green connector); isolation 1.5 kV
• Battery: Yes
• SD Card Slot: SD
• VPN: OpenVPN (SSL UDP/TCP); communications encrypted with SSL/TLS and x.509 certificates
• Router features: IP filtering, NAT, port forwarding, proxy, routing table, DHCP client/server
• Country of Origin: Lithuania
