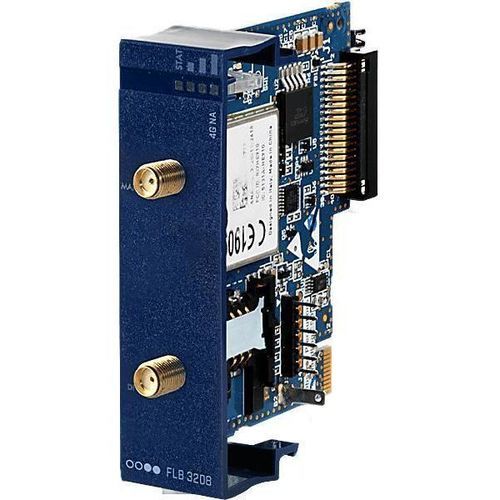

Wireless modem card FLB3208_00

cellular4G LTE3G UMTS

Short description
Interchangeable 4G LTE extension card for Ewon Flexy gateways enabling cellular connectivity in North America.

Overview

• Provides 4G LTE modem connectivity for Ewon Flexy units in North America, ideal for installations without wired internet.
• Requires a standard SIM card with a data plan to connect to the Talk2m cloud for remote access.
• Enables secure VPN connectivity for SCADA and industrial monitoring without a fixed public IP.
• Compatible with Ewon Flexy 10x and 20x series and Ewon Flexy 205 (requires Flexy base unit firmware 14.8s0 or higher).
• Modular, hot-pluggable extension board designed to keep gateway communication technologies up to date.

Features and benefits

• Modular gateway design: add or replace communication modules to adapt to changing network technologies while preserving the base unit investment.

Content of delivery

• Electronic extension board mounted in a plastic front plate with protective plastic cap on the DIV SMA connector.
• Packed in an ESD plastic bag sealed with a yellow sticker and shipped in a cardboard box.
• Includes printed legal documentation.

Not included

• Antenna (sold separately).

Certifications & Standards
Cellular network compatibility: AT&T and T-Mobile (not compatible with Verizon).
PTCRB: Yes
Product certifications: UL, PTCRB, FCC, IC
WEEE category: IT and telecommunications equipment

Wireless features
Frequencies & Bands: 4G: B71 (600 MHz), B12/B13/B14 (700 MHz), B5 (850 MHz), B4/B66 (1700 MHz), B2 (1900 MHz). 3G: B5 (850 MHz), B4 (1700 MHz), B2 (1900 MHz).
Supported modem extension cards: FLB3208, FLB320A, FLB3209, FLB3271 (Flexy base unit must run firmware 14.8s0 or higher).
Antenna connector: 2× SMA-F (Main and Diversity).
Antenna: Not included.

Physical & Packaging
Net dimensions (W × H × D): 22 mm × 79 mm × 82 mm.
Net weight: 46 g.
Packed dimensions (W × H × D): 102 mm × 30 mm × 95 mm.
Packed weight: 68 g.
Housing material: Plastic.
Packaging material: Cardboard.

Environment
Operating temperature: -25 °C to +60 °C.
Storage temperature: -30 °C to +70 °C.
Environmental and vibration/shock tests performed according to IEC 60068 series and related parts (cold, dry heat, temperature change, cyclic damp heat, vibration, shock).

Safety & Security
Safety standards: EN IEC 62368-1:2020 + A11:2020; UL 62368-1 Third Edition; CAN/CSA C22.2 No. 62368-1; J62368-1 (Japan national differences).

Related software
Talk2m industrial cloud: remote connectivity and machine monitoring service when used with Ewon gateways.

Technical specifications

• Item number: FLB3208_00
• Model code: 04201
• Brand: Ewon
• Country of origin: Romania
• Predecessor: FLB3202_01, FLB3205_00
• HS code: 8517790000
• Dual usage: No
• Net dimensions (W × H × D): 22 mm × 79 mm × 82 mm
• Net weight: 46 g
• Packed dimensions (W × H × D): 102 mm × 30 mm × 95 mm
• Packed weight: 68 g
• Operating temperature: -25 °C to +60 °C
• Storage temperature: -30 °C to +70 °C
• Housing material: Plastic
• Packaging: Cardboard
• Warranty: 3 years
• Frequencies / Bands (selected): 4G B71, B12, B13, B14, B5, B4, B66, B2; 3G B5, B4, B2
• Antenna connector: SMA (2× SMA-F female: Main and Diversity)
• Antenna: Not included
• Contains battery: No
• Product certifications: UL, PTCRB, FCC, IC
