Automation starter kit STK205

monitoringdata acquisitionIoT

Overview
The Ewon IIoT Data Starter Kit (STK205) provides a ready-to-deploy industrial gateway solution for remote machine connectivity, data acquisition and integration. It includes the Ewon Flexy 205 gateway plus extension boards to enable WiFi, additional I/O and demo functionality — suitable for pilot projects, proof-of-concepts and small-scale rollouts in industrial environments.

Features and benefits

• Data acquisition and logging: Collect data from PLCs, sensors and field devices via a broad set of industrial protocols, including OPC UA and Modbus.
• Remote connectivity and troubleshooting: Secure VPN remote access (Talk2M) for PLC diagnostics and maintenance; quick setup with embedded wizards.
• Local and cloud monitoring: Local web-dashboards for KPI visualization and cloud live KPIs via M2Web and Talk2M Data Services.
• Flexible data integration: Send data to on-premise or cloud servers using MQTT, HTTPS, FTP or APIs; scripting support (Basic/Java) for custom flows.
• Expandable communications: Interchangeable extension cards (WiFi, 3G/4G, USB, Ethernet WAN) to adapt to changing network needs.
• Protocol coverage: OPC UA server, Modbus RTU/TCP, EtherNet/IP, PROFINET/PROFIBUS adapters and many vendor-specific PLC drivers for wide compatibility.
• Industrial readiness: DIN-rail or wall mounting, extended temperature range and vibration/shock testing per IEC standards.
• Purchase limitation: 1 piece per customer.

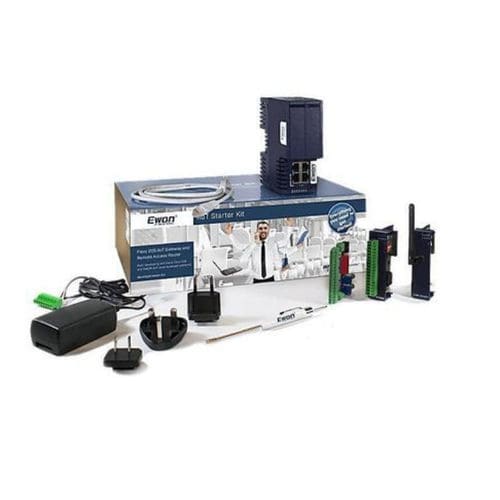

Contents of delivery

• Ewon Flexy 205 gateway
• WiFi extension board
• I/O extension board
• I/O demo board
• Power supply set (PSU + 3 plugs for EU/UK/US + 2 power connectors)
• Grey Ethernet cable, 1 m
• Branded screwdriver
• Welcome leaflet
• Branded cardboard box

Additional product notes

• Item number: STK205
• One piece per customer only

Technical specifications

• Item Number: STK205
• Commercial name: Ewon IIoT Data Starter Kit
• Brand: Ewon
• Country of Origin: Belgium
• HS Code: 8517699000
• Certifications: CE, UL, KC, RCM, FCC, IC, UKCA; Giteki Japan; Russia FSS notification
• Environmental tests: IEC 60068 series (cold, dry heat, temperature change, cyclic damp heat)
• Vibration & shock: IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-6
• WEEE Category: IT and telecommunications equipment
• Net dimensions (W×H×D): 55 × 133 × 122 mm
• Net weight: 122 g
• Packed dimensions (W×H×D): 891.5 × 320 × 110 mm
• Packed weight: 228 g
• Mounting: DIN-rail (bracket included) or wall mount
• Input voltage: 12–24 VDC ±20%, LPS
• Power connector: 9‑pole
• Operating temperature: -25 °C to +60 °C
• Storage temperature: -30 °C to +70 °C
• Relative humidity: 10–95% (non-condensing)
• Housing material: Plastic
• Packaging material: Cardboard
• Warranty: 3 years
• Configuration: Web-based setup via embedded interface with wizards; user management and custom web GUI upload
• VPN security: SSL/TLS end-to-end encryption; x509 certificate authentication; robust cipher suites
• VPN: OpenVPN (SSL UDP or TCP)
• Router features: LAN/WAN routing, Ethernet-to-serial gateway, IP filtering, NAT, port forwarding, DHCP client/server
• Data acquisition protocols: OPC UA, Modbus RTU/TCP, Unitelway, DF1, PPI, MPI, PROFIBUS, FINS, EtherNet/IP, ISO TCP, Mitsubishi protocols, BACnet/IP, ASCII
• Data publishing protocols: OPC UA, Modbus, MQTT, SNMP, HTTPS
• Data logging: Up to 2,500 internal tags; internal DB up to 1,000,000 timestamps; export via DataMailbox, FTP or email
• Data features: Multiple IoT connectors; embedded scripting (Basic/Java); Talk2M Data Services APIs; local dashboards and cloud KPI monitoring
• Connectors: 4 × RJ45 Ethernet (10/100 Mb) configurable LAN/WAN (port 1 fixed LAN); 2 × digital inputs (0–12/24 VDC, 1.5 kV isolation); 1 × digital output (open-drain MOSFET, 200 mA, 1.5 kV isolation)
• Battery: Yes
• SD card slot: SD
• Extension options: Interchangeable cards for WiFi, 3G, 4G, USB, Ethernet WAN
