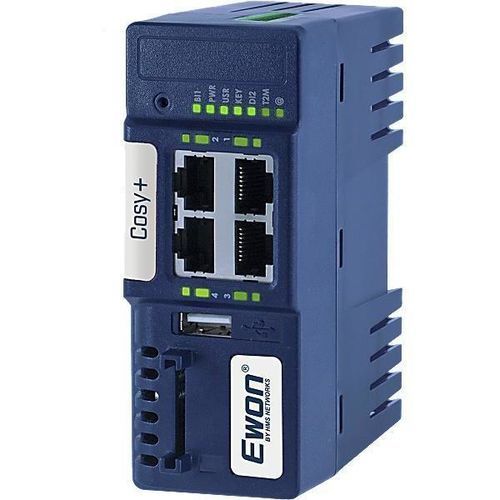

Data Terminal Unit communication router EC71330_00MA

wirelessdatacellular

Short description
The Ewon Cosy+ gateway establishes a secure VPN connection between the machine (PLC, HMI or other devices) and the remote engineer using the Talk2m industrial cloud service. It provides non-intrusive outbound connectivity for secure industrial remote access.

Product description
The Ewon Cosy+ simplifies secure remote troubleshooting, monitoring and maintenance of machines, helping to maximize uptime and reduce on-site interventions. It supports straightforward deployment and centralized management via the Talk2m cloud.

Features and benefits

• Multiple connectivity options to ensure successful deployment in varied network environments.
• Industrial remote access to improve machine uptime and operational efficiency.
• Reduce travel and service costs by enabling remote troubleshooting and maintenance.
• Built-in hardware security (Secure Element), ISO 27001 aligned practices and machine LAN segregation.
• User-friendly setup with non-intrusive outbound connections and web-based setup wizards — no advanced IT skills required.
• Centralized connectivity management through the Talk2m industrial cloud service.
• Scalable architecture allowing addition of devices and users as needed.
• Global connectivity backed by Talk2m infrastructure and extended SLA.

Product variants

• Wi-Fi 4
• 4G NA
• 4G JP
• Ethernet
• 4G EU
• 4G APAC

Technical specifications

• Item Number: EC71330_00MA
• Commercial denomination (model): Ewon Cosy+
• Brand: Ewon
• Predecessor: EC61330
• Model Code: 11702,01702
• HS Code: 8517620000
• Standards: EN 62368-1:2020+A11:2020, J62368-1(2023), SASO-IEC 62368-1:2020, AS/NZS 62368.1:2022, CSA/UL 62368-1:2019
• Certifications: CE, UL, KC, RCM, FCC, IC, UKCA
• PTCRB: No
• Environment tests: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-14, IEC 60068-2-30
• Vibration & shock tests: IEC 60068-2-27, IEC 60068-2-64, IEC 60068-2-6
• WEEE category: IT and telecommunications equipment
• Dimensions (W×H×D): 42 × 117 × 99 mm
• Net weight: 198 g
• Packed dimensions (W×H×D): 168 × 45 × 148 mm
• Packed weight: 261 g
• Mounting: DIN rail (bracket included), wall mount
• Input voltage: 12–24 VDC ±20% (LPS)
• Power connector: 9-pin
• Operating temperature: -25 °C to +60 °C
• Storage temperature: -30 °C to +70 °C
• Housing material: Plastic
• Packaging material: Cardboard
• Warranty: 3 years
• Configuration: Web-based via embedded interface with setup wizards; basic authentication and session control
• WAN: up to 3× 10/100 Mb Ethernet ports
• LAN: up to 4× 10/100 Mb Ethernet ports
• IO: 1× DO (open drain MOSFET) 200 mA (1.5 kV isolation); 2× DI on green connector
• Battery: Yes
• SD card slot: SD
• VPN security: SSL/TLS with x.509 authentication; end-to-end encryption
• Router features: IP filtering, NAT, port forwarding, proxy, routing table, DHCP client/server
• VPN: OpenVPN (SSL UDP or TCP)
• Country of origin: Lithuania
