Hardware starter kit STKEC7133J

automationmonitoringelectric

Product overview
The Ewon Remote Access Starter Kit provides a ready-to-use industrial remote access solution including an Ewon COSY+ WiFi gateway and all accessories for quick deployment. The kit is designed for straightforward machine connectivity and secure remote maintenance without advanced IT setup.

Features and benefits

• Multiple connectivity options and simple installation for remote access in diverse network conditions.
• Reduces on-site interventions by enabling remote troubleshooting and maintenance.
• Built-in hardware security (Secure Element), ISO 27001 alignment, machine LAN segregation and strong VPN/TLS encryption for end-to-end protection.
• Outbound, non-intrusive connections that require no complex IT changes.
• Managed connectivity via Talk2M industrial cloud for session control and user access.
• Scalable: add devices and users according to operational needs.
• Global connectivity backed by a reliable infrastructure and extended SLA.
• Sales restriction: 1 piece per customer.

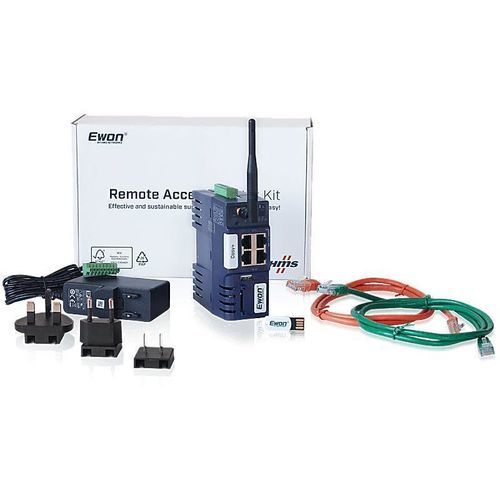

Content of delivery

• Ewon COSY+ WIFI device (industrial plastic housing, power connector, WiFi antenna, USB configuration key, legal references in paper)
• 2 × Ethernet cables, 1 m (one green, one orange)
• Power supply set with adapters for EU / UK / US markets and power connector
• Start-up guide (paper)
• Branded cardboard packaging

Certifications & standards

• Product certifications: CE, RCM, FCC, IC, PTCRB, UKCA
• Compliance/Standards: EN 62368-1:2020+A11:2020, J62368-1 (2023), SASO-IEC 62368-1:2020, AS/NZS 62368.1:2022, CSA/UL 62368-1:2019

Technical specifications

• Item number: STKEC7133J
• Model code: 04002
• Brand: Ewon
• Country of origin: Belgium
• HS Code: 8517699000
• Net Width: 42 mm
• Net Height: 117 mm
• Net Depth: 105 mm
• Net Weight: 618 g
• Packed Width: 240 mm
• Packed Height: 85 mm
• Packed Depth: 155 mm
• Packed Weight: 814.5 g
• Mounting: DIN-rail mount (bracket included), wall mount
• Operating temperature: -25 °C to +60 °C
• Storage temperature: -30 °C to +70 °C
• Housing material: Plastic
• Packaging material: Cardboard
• Warranty: 3 years
• Contains battery: Yes
• SD Card Slot: SD
• WAN: up to 3 ports, 10/100 Mb Ethernet
• LAN: up to 4 ports, 10/100 Mb Ethernet
• Connectors / I/O: 1x DO open drain (MOSFET) 200 mA, isolation 1.5 kV; 2x DI on green connector
• Wireless security: Client WPA/WPA2/WEP, Access Point WPA2
• Wireless channels: 1 to 11
• Antenna connector: RP-SMA (antenna included)
• VPN security: SSL/TLS encryption, x509 certificate authentication, end-to-end encrypted traffic
• Router features: IP filtering, IP forwarding, NAT, port forwarding, proxy, routing table, DHCP client/server
• VPN protocol: OpenVPN (SSL UDP or TCP)
• Configuration: Web-based interface with setup wizards, basic authentication and session control
