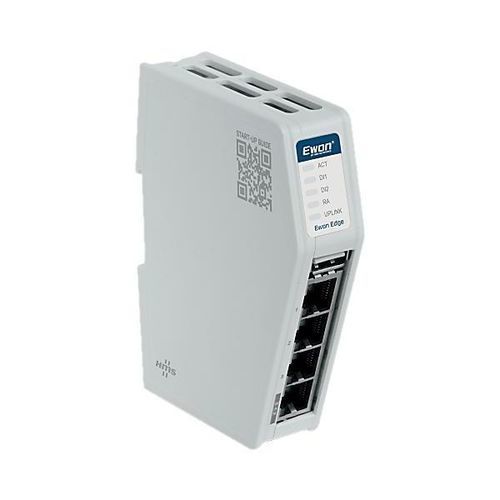

Communication gateway EE310

securityindustrialIoT

Overview
A compact Ethernet gateway providing secure remote access and cloud connectivity for industrial machines. Ewon Edge 310 (EE310) simplifies deployment and daily operation with intuitive setup and centralized user management via Ewon Cloud.

Features and benefits

• Simple access control for unlimited users — manage logins and access rights in Ewon Cloud with strong authentication and end-to-end visibility across your network.
• Configurable network segmentation — define LAN and WAN interfaces independently to control isolation and exposure of industrial devices.
• Flexible deployment & recovery — USB-based configuration supports offline gateways for fast on-site setup or recovery without a live cloud connection.
• Operational consistency — designed for steady, predictable performance in industrial environments.
• Unified user and access management — a single control space for technicians to locate and perform required actions.
• Commissioning and visibility — dashboards for commissioning and remote access help select and adjust the right plan as operations evolve.

Physical & Connectivity

• WAN / LAN: 4 × RJ45 Ethernet 10–100 Mbps (3 LAN ports and 1 WAN port).
• Connectors / I/O: 2× digital input (0–24 Vdc; 1.5 kVdc isolation); 1× relay output (max 500 mA; 1.5 kVdc isolation).
• Contains battery: No.
• Mounting: DIN rail mount (bracket included).

Certifications & Standards

• UL Information: E350576
• Product Certifications: KC, RCM, CE (RED/EMC), FCC, IC, UKCA, cURus
• Other certification notes: Complies with Japanese regulations; South Korea KC; RCM for Australia and New Zealand.
• Protection class: IPX0
• Safety standards: EN IEC 62368-1:2020+A11:2020; CSA/UL 62368-1:2019; J62368-1 (2023); AS/NZS 62368.1:2022; National standard SASO-IEC 62368-1:2020

Identification

• Item number: EE310
• Model code: 01003
• Brand: Ewon
• Product lifecycle state: Active
• Country of origin: Belgium
• HS Code: 8517620000

Caractéristiques / spécifications techniques

• Net Width (mm): 25 mm
• Net Height (mm): 120 mm
• Net Depth (mm): 151 mm
• Net Weight (g): 151 g
• Packed Width (mm): 39 mm
• Packed Height (mm): 138 mm
• Packed Depth (mm): 178 mm
• Packed Weight (g): 217 g
• Mounting: DIN rail mount (bracket included)
• Input Voltage (V): 18 - 24 Vdc +/-20%, LPS
• Power Connector: 8-pole
• Operating Temperature °C Min: -25 °C
• Operating Temperature °C Max: +60 °C
• Storage Temperature °C Min: -30 °C
• Storage Temperature °C Max: +70 °C
• Relative Humidity: Operating: 10 to 95% relative humidity (non-condensing). Storage: 10 to 95% relative humidity (non-condensing).
• Housing Materials: Plastic
• Packaging Material: Cardboard
• Warranty (years): 3
• Internal Storage: 4 GB
• RAM: 1 GB
• Configuration: Device configuration through Ewon Cloud or USB
• WAN / LAN spec: 4 × RJ45 Ethernet 10–100 Mbps (3 LAN ports and 1 WAN port)
• Connectors / Input / Output: 2× digital input (0–24 Vdc; 1.5 kVdc isolation); 1× relay output (max 500 mA; 1.5 kVdc isolation)
• Contains Battery: No
