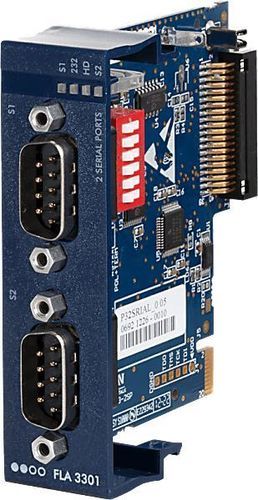

RS232 modem card FLA3301_00H

RS485for PLC communicationsfor IoT applications

Short description
Interchangeable extension card providing two serial ports (RS232/422/485) for Ewon Flexy gateways, certified for use in Class 1 Division 2 hazardous locations.

Overview
The FLA3301_00H Extension Card (2 Serial Ports, Class 1 Div 2) equips Ewon Flexy devices with additional serial connectivity to collect and forward machine data from PLCs, sensors and legacy devices. Compatible with major industrial protocols including OPC UA, it supports monitoring, KPI collection and predictive maintenance workflows for industrial installations.

Features and benefits

• Class 1 Div 2 certification: Certified for hazardous environments where flammable or explosive substances may be present, enabling safe deployment in sectors such as oil & gas and chemical plants.
• Modular Flexy architecture: Hot-swappable extension card design lets system integrators adapt gateway I/O to evolving communication needs while protecting existing device investments.

Certifications & Standards

• UL Information: Complies with UL 121201, 9th Ed. (Issue Date: 2017-09-15; Revision Date: 2021-04-01) and CSA C22.2 NO. 213-17, 3rd Ed. for Hazardous Locations Class 1, Division 2.
• Other Certification: Giteki Japan
• PTCRB: No
• Environment: Operating & storage temperature tests per IEC 60068 series (IEC 60068-2-1, -2-2, -2-14, -2-30).
• Vibration and Shock: Tested to IEC 60068-2-27, IEC 60068-2-64 and IEC 60068-2-6.
• WEEE Category: IT and telecommunications equipment.
• Product Certifications: CE, UL, FCC, IC, UKCA.

General

• Content of delivery: Electronic extension board in plastic front plate, ESD bag with yellow sticker, legal documentation and cardboard box.
• Net Width: 22 mm
• Net Height: 79 mm
• Net Depth: 78 mm
• Net Weight: 44 g
• Packed Width: 102 mm
• Packed Height: 30 mm
• Packed Depth: 95 mm
• Packed Weight: 65.5 g
• Operating Temperature: -25 °C to +60 °C
• Storage Temperature: -30 °C to +70 °C
• Housing Materials: Plastic
• Packaging Material: Cardboard
• Warranty: 3 years

Identification & Status

• Item Number: FLA3301_00H
• Dual Usage: No
• Country of Origin: Belgium
• Brand: Ewon
• HS Code: 8517790000
• Model Code: 00601

Physical features

• Connectors / Input / Output: 1x SUBD9 (RS232/422/485 configurable by DIP switch) and 1x SUBD9 (RS232).
• Contains Battery: No

Technical specifications

• Net Width: 22 mm
• Net Height: 79 mm
• Net Depth: 78 mm
• Net Weight: 44 g
• Packed Width: 102 mm
• Packed Height: 30 mm
• Packed Depth: 95 mm
• Packed Weight: 65.5 g
• Operating Temperature: -25 °C to +60 °C
• Storage Temperature: -30 °C to +70 °C
• Housing Materials: Plastic
• Packaging Material: Cardboard
• Warranty: 3 years
• Connectors: 1x SUBD9 (RS232/422/485 configurable), 1x SUBD9 (RS232)
• Product Certifications: CE, UL, FCC, IC, UKCA
• UL Standard: UL 121201 (Class 1 Div 2)
• Other Certification: Giteki Japan
• WEEE Category: IT and telecommunications equipment
• Item Number: FLA3301_00H
• Model Code: 00601
• Brand: Ewon
• Country of Origin: Belgium
• HS Code: 8517790000
