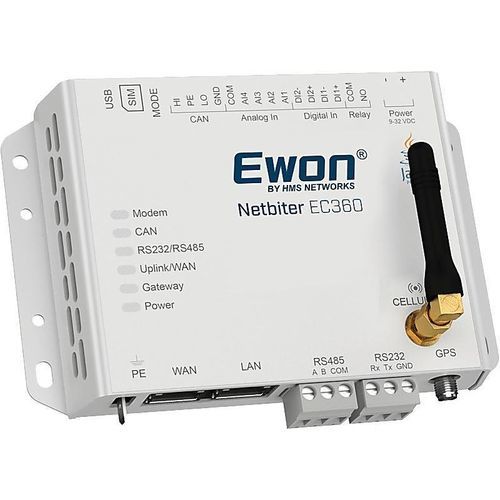

Communication gateway Netbiter EC360

securityindustrialtelemetry

Overview
Ewon Netbiter EC360 is an industrial 4G cellular gateway for remote monitoring and control of field equipment. The device connects assets via Cellular 4G or Ethernet to the Netbiter Argos cloud platform to enable 24/7 monitoring, alarm handling and centralized management. It supports encrypted communication, secure tunnels for remote configuration and can be accessed via web browser or mobile applications.

Features and benefits

• 24/7 remote monitoring and management: Monitor performance, receive alarms and perform configuration or troubleshooting remotely.
• Secure, encrypted connectivity: Data transmitted over cellular or Ethernet to the Netbiter Argos cloud with secure protocols (HTTPS, MQTT).
• Flexible alarm delivery: Push notifications, email or SMS with current and historical alarm records for audit and action.
• Wide protocol support: Connect to field assets via Modbus RTU/TCP, EtherNet/IP, CAN, J1939 and IO.
• Project and user access control: Define projects, users and access rights for multi-user deployments.
• Scalable deployment: Suitable for single-site installations and large multi-site projects.
• Rugged design and security: Metal housing, wide temperature range and hosted infrastructure with redundancy.
• Remote device access: Create secure tunnels for configuration, programming or debugging of industrial controllers and devices.

Technical specifications

• Item number: NB1022
• Commercial model: Netbiter EC360
• Brand: Ewon
• Country of origin: Sweden
• HS Code: 8517699000
• Certifications: CE, UL, RCM
• WEEE Category: IT and telecommunications equipment
• Contents of delivery: Gateway, DIN rail mounting kit, Installation Guide, Activation Information
• Not included: Power supply, Antenna
• Net dimensions (W×H×D): 130 mm × 25 mm × 100 mm
• Net weight: 480 g
• Packed dimensions (W×H×D): 135 mm × 59 mm × 173 mm
• Packed weight: 485 g
• Mounting: Wall mount, DIN rail mount (bracket included)
• Input voltage: 9–32 V
• Power consumption: 4.5 W
• Operating temperature: -40 °C to 65 °C
• Storage temperature: -45 °C to 85 °C
• Housing material: Metal
• Packaging material: Cardboard
• Warranty: 3 years
• Configuration: Managed from Argos
• Data acquisition protocols: IO, J1939, Modbus RTU, Modbus-TCP
• Data publishing protocols: HTTPS, Modbus, MQTT
• Cellular standard: 4G
• Wireless features — GPS supported: Yes
• Frequencies & bands: B1 (2100), B3 (1800+), B7 (2600), B8 (900 GSM), B20 (800 DD)
• Antenna connector: SMA
• Connectors: Power, RS485, RS232, IO
• SD card slot: SD
