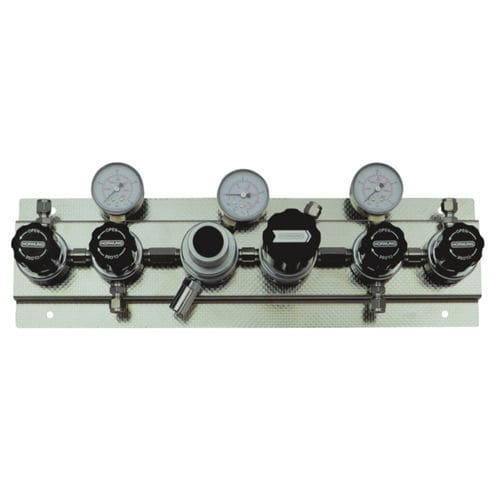

Gas control unit HP 258

The HP 258 is a single stage cylinder station with automatic changeover and internal purging. It serves the safe supply of high purity and mixed gases from single or bundled cylinders. The changeover takes place as soon as the pressure in the first side sinks below a predetermined level. This is controlled by two installed regulators with connected outlets. The station is mounted on a stainless steel panel and has at the standard version a inlet and outlet gauge, as well as a relif valve and a shut off valve for the process and pure gas Special characteristics: Modular design of the cylinder station. Shut-off valves for process and purge gas. Expandability for 2x2 cylinders / cylinder bundles is already integrated. Options for external gas purging can be retrofitted without any problem. Especally for gases with high requirements on purity up to 5.0. Secure and leak-proof where an uninterrupted supply over night and at weekends must be guaranteed. With options like contact gauges and gas alarm boxes the supply concept can be optimised further.
