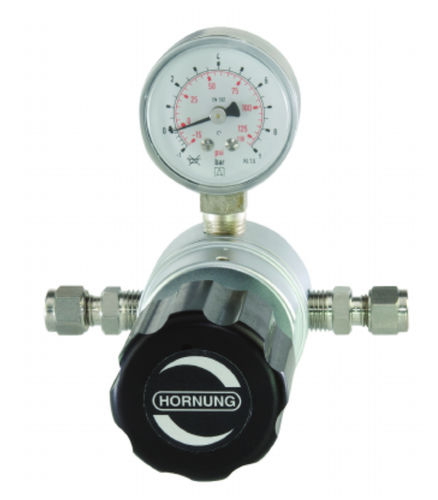

Gas pressure regulator HP 312diaphragmsingle-stageanalog
Add to favorites
Compare this product
Characteristics
- Product
- for gas
- Technology
- diaphragm
- Number of stages
- single-stage
- Output signal
- analog
- Material
- stainless steel, aluminium
- Applications
- industrial, high-pressure, for medical applications, for analytical instruments, high-purity, laboratory, for chemical applications, for pharmaceutical applications
- Other characteristics
- with pressure gauge, line
- Pressure
Min.: 0 bar
(0 psi)Max.: 200 bar
(2,900.75 psi)- Flow
Min.: 0 m³/h
(0 ft³/h)Max.: 40 m³/h
(1,412.59 ft³/h)- Orifice diameter
0.25 in
- Temperature
Min.: -30 °C
(-22 °F)Max.: 60 °C
(140 °F)
Description
The pressure regulator HP 312 is a single stage self-venting line pressure
regulator made of anodized aluminium, which has been developed for the extraction of high purity gases and gas mixtures.
The pressure reducer is designed as a diaphragm pressure reducer and specially designed for the high-pressure range.
It can optionally be equipped with an outlet gauge.
Especially for gases with high demands on purity up to 5.0, safety and tightness.
Due to our special cleaning process, the pressure regulators are ECD-compatible.
The HP 312 reduces the pressure of compressed gases to a maximum outlet pressure of 17 bar.
