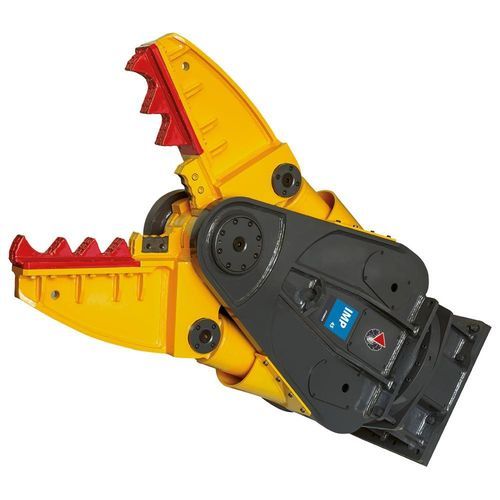

Concrete hydraulic crusher IMP 45
for buildingfor excavatorscombi

Concrete hydraulic crusher - IMP 45 - INDECO - for building / for excavators / combi
Concrete hydraulic crusher - IMP 45 - INDECO - for building / for excavators / combi
Concrete hydraulic crusher - IMP 45 - INDECO - for building / for excavators / combi - image - 2
Add to favorites
Compare this product
Go to the INDECO website for more information

Characteristics

Applications
for concrete, for building
Load-bearing
for excavators
Other characteristics
combi
Carrier weight

Max.: 65 t
(71.7 us ton)

Min.: 38 t
(41.9 us ton)

Description

Product
Multiprocessor in crusher configuration. Model: IMP 45. Designed for primary demolition and crushing on tracked excavators. Compatible with HP 7000 - HP 9000 mounting brackets.

Technical specifications
Excavator weight*: 38 ÷ 65 t
Width: 640 mm
Oil delivery: 270 ÷ 370 l/min
Maximum pressure at cylinders: 350 bar
Closure time (no-load): 4 s
Opening time (no-load): 2 s
Hydraulic connections for cylinders: 1”1/4
Maximum rotation flow: 30 l/min
Maximum rotation pressure: 110 bar
Hydraulic connections for rotation: 1/2”
Mounting bracket compatibility: HP 7000 - HP 9000

Jaw technical data
Operating weight*: 4500 Kg
Height: 2660 mm
Maximum opening: 1250 mm
Jaw depth: 930 mm
Cutter blade length: 180 mm
Max clamping force at tip: 130 ton
Maximum clamping force at shears: 460 ton
Type of carrier: Tracked excavator

Notes
*The operating weight of the equipment includes the mounting bracket compatible with Indeco construction standards. Variations in weight can depend on bracket configuration.
N.B. All illustrations and numerical data are indicative and may be changed without notice for product improvement.

Characteristics / technical specifications
  • Excavator weight*: 38 ÷ 65 t
  • Width: 640 mm
  • Oil delivery: 270 ÷ 370 l/min
  • Maximum pressure at cylinders: 350 bar
  • Closure time (no-load): 4 s
  • Opening time (no-load): 2 s
  • Hydraulic connections for cylinders: 1”1/4
  • Maximum rotation flow: 30 l/min
  • Maximum rotation pressure: 110 bar
  • Hydraulic connections for rotation: 1/2”
  • Mounting bracket compatibility: HP 7000 - HP 9000
  • Operating weight*: 4500 Kg
  • Height: 2660 mm
  • Maximum opening: 1250 mm
  • Jaw depth: 930 mm
  • Cutter blade length: 180 mm
  • Max clamping force at tip: 130 ton
  • Maximum clamping force at shears: 460 ton
  • Type of carrier: Tracked excavator
