Secondary demolition hydraulic crusher IMP 20for concretefor excavators
Add to favorites
Compare this product
Characteristics
- Applications
- for secondary demolition, for concrete
- Load-bearing
- for excavators
- Carrier weight
Max.: 36,000 kg
(79,366.4 lb)Min.: 17,000 kg
(37,478.6 lb)
Description
Product overview

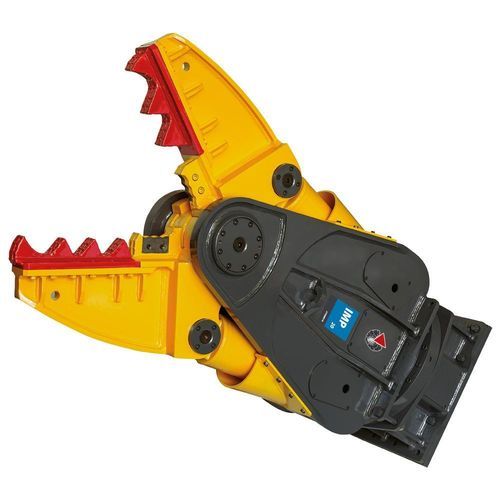

Multiprocessor in crusher configuration IMP 20, designed for demolition and material processing on excavators. Compatible with HP 3000 ÷ HP 4000 mounting brackets.
Technical specifications
Jaw technical data
Notes
* The operating weight includes the mounting bracket compatible with Indeco construction standards. Differences in weight may result from different mounting bracket configurations.
All illustrations and numerical data are indicative and may be modified without notice for product improvement and development.
Characteristics / technical specifications
Multiprocessor in crusher configuration IMP 20, designed for demolition and material processing on excavators. Compatible with HP 3000 ÷ HP 4000 mounting brackets.
Technical specifications
- Excavator weight*: 17 ÷ 36 ton
- Width: 475 mm
- Oil delivery: 180 ÷ 250 l/min
- Maximum pressure at cylinders: 350 bar
- Closure time (no-load): 2.5 s
- Opening time (no-load): 1.2 s
- Hydraulic connections for cylinders: 3/4”
- Maximum rotation flow: 25 l/min
- Maximum rotation pressure: 110 bar
- Hydraulic connections for rotation: 1/2”
- Mounting bracket compatibility: HP 3000 ÷ HP 4000
Jaw technical data
- Operating weight*: 2080 Kg
- Height: 2120 mm
- Maximum opening: 910 mm
- Jaw depth: 660 mm
- Cutter blade length: 120 mm
- Max clamping force at tip: 60 ton
- Maximum clamping force at shears: 270 ton
- Type of carrier: Wheeled excavator; Tracked excavator
Notes
* The operating weight includes the mounting bracket compatible with Indeco construction standards. Differences in weight may result from different mounting bracket configurations.
All illustrations and numerical data are indicative and may be modified without notice for product improvement and development.
Characteristics / technical specifications
- Excavator weight*: 17 ÷ 36 ton
- Width: 475 mm
- Oil delivery: 180 ÷ 250 l/min
- Maximum pressure at cylinders: 350 bar
- Closure time (no-load): 2.5 s
- Opening time (no-load): 1.2 s
- Hydraulic connections for cylinders: 3/4”
- Maximum rotation flow: 25 l/min
- Maximum rotation pressure: 110 bar
- Hydraulic connections for rotation: 1/2”
- Mounting bracket compatibility: HP 3000 ÷ HP 4000
- Jaw operating weight*: 2080 Kg
- Jaw height: 2120 mm
- Jaw maximum opening: 910 mm
- Jaw depth: 660 mm
- Cutter blade length: 120 mm
- Max clamping force at tip: 60 ton
- Maximum clamping force at shears: 270 ton
- Type of carrier: Wheeled excavator; Tracked excavator
