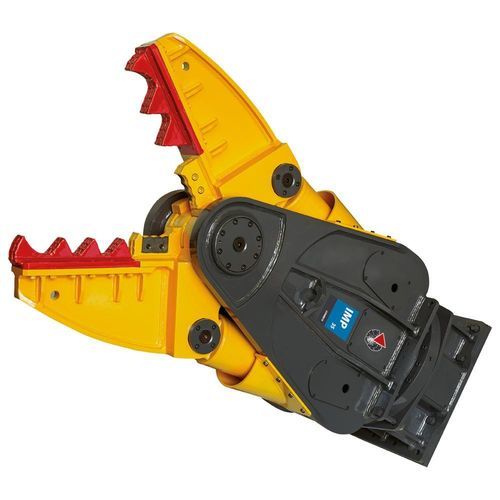

Excavator hydraulic crusher IMP 35

Product
Multiprocessor crusher IMP 35 — demolition configuration for tracked excavators.

Series / Family
MULTIPROCESSOR

Typology
Crusher / demolition configuration

Technical specifications (summary)
Excavator weight*: 28 ÷ 55 t
Width: 590 mm
Oil delivery: 220 ÷ 320 l/min
Maximum pressure at cylinders: 350 bar
Closure time (no-load): 4 s
Opening time (no-load): 2 s
Hydraulic connections for cylinders: 1”1/4
Maximum rotation flow: 30 l/min
Maximum rotation pressure: 110 bar
Hydraulic connections for rotation: 1/2”
Mounting bracket compatibility: HP 5000

Jaw technical data
Operating weight*: 3500 Kg
Height: 2450 mm
Maximum opening: 1150 mm
Jaw depth: 860 mm
Cutter blade length: 180 mm
Max clamping force at tip: 110 t
Maximum clamping force at shears: 390 t
Type of carrier: Tracked excavator

Notes
*The operating weight includes the mounting bracket compatible with Indeco construction standards. Differences in weight may result from alternate bracket configurations.
All illustrations and numerical data are indicative and may be changed without notice for product improvement and development.

Technical characteristics / specifications

• Excavator weight*: 28 ÷ 55 t
• Width: 590 mm
• Oil delivery: 220 ÷ 320 l/min
• Maximum pressure at cylinders: 350 bar
• Closure time (no-load): 4 s
• Opening time (no-load): 2 s
• Hydraulic connections for cylinders: 1”1/4
• Maximum rotation flow: 30 l/min
• Maximum rotation pressure: 110 bar
• Hydraulic connections for rotation: 1/2”
• Mounting bracket compatibility: HP 5000
• Operating weight (jaw)*: 3500 Kg
• Height: 2450 mm
• Maximum opening: 1150 mm
• Jaw depth: 860 mm
• Cutter blade length: 180 mm
• Max clamping force at tip: 110 t
• Maximum clamping force at shears: 390 t
• Type of carrier: Tracked excavator
