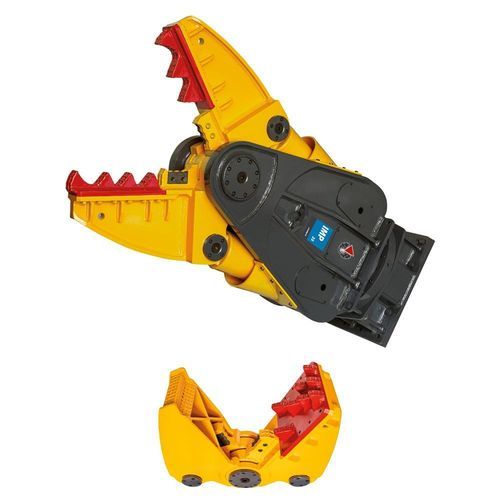

Concrete hydraulic crusher IMP 25

for excavators

Product family
MULTIPROCESSOR - Pulverizer configuration

TECHNICAL SPECIFICATIONS
Excavator weight*: 20 ÷ 45 ton
Width: 495 mm
Oil delivery: 200 ÷ 300 l/min
Maximum pressure at cylinders: 350 bar
Closure time (no-load): 3 s
Opening time (no-load): 1,5 s
Hydraulic connections for cylinders: 3/4”
Maximum rotation flow: 25 l/min
Maximum rotation pressure: 110 bar
Hydraulic connections for rotation: 1/2”
Mounting bracket compatibility: HP 3000 ÷ HP 4000

JAW TECHNICAL DATA
Operating weight*: 2450 Kg
Height: 2280 mm
Maximum opening: 850 mm
Jaw depth: 700 mm
Cutter blade length: 180 mm
Max clamping force at tip: 90 ton
Maximum clamping force at shears: 340 ton
Type of carrier:

• Wheeled excavator
• Tracked excavator

Notes
* The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.
N.B. All illustrations and numerical data in this catalog are purely indicative and subject to change at our discretion and without notice. We therefore reserve the right to modify them with a view to improving and continuously developing our product.

Caractéristiques / spécifications techniques

• Product family: MULTIPROCESSOR - Pulverizer configuration
• Excavator weight*: 20 ÷ 45 ton
• Width: 495 mm
• Oil delivery: 200 ÷ 300 l/min
• Maximum pressure at cylinders: 350 bar
• Closure time (no-load): 3 s
• Opening time (no-load): 1,5 s
• Hydraulic connections for cylinders: 3/4”
• Maximum rotation flow: 25 l/min
• Maximum rotation pressure: 110 bar
• Hydraulic connections for rotation: 1/2”
• Mounting bracket compatibility: HP 3000 ÷ HP 4000
• Operating weight (jaw)*: 2450 Kg
• Height (jaw): 2280 mm
• Maximum opening (jaw): 850 mm
• Jaw depth: 700 mm
• Cutter blade length: 180 mm
• Max clamping force at tip: 90 ton
• Maximum clamping force at shears: 340 ton
• Type of carrier: Wheeled or Tracked excavator
