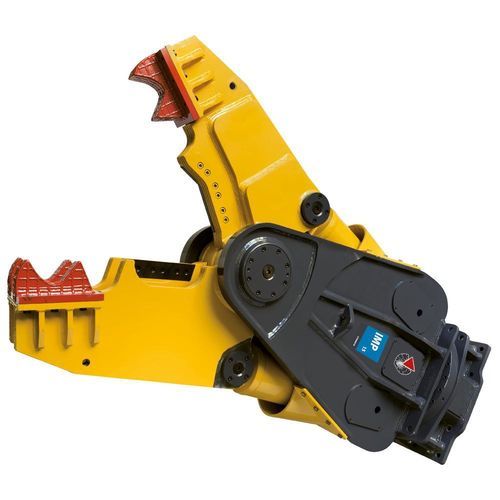

Recycling hydraulic cutter IMP 15

Product overview
The IMP 15 multiprocessor in combi cutter configuration is a hydraulically driven demolition and processing attachment designed for wheeled and tracked excavators in the 12 ÷ 24 ton class. It combines cutting and shearing functions for material processing, demolition and on-site recycling.

Key characteristics

• Excavator weight*: 12 ÷ 24 ton
• Width: 425 mm
• Oil delivery: 150 ÷ 250 l/min
• Maximum pressure at cylinders: 350 bar
• Closure time (no-load): 2 s
• Opening time (no-load): 1 s
• Hydraulic connections for cylinders: 3/4”
• Maximum rotation flow: 20 l/min
• Maximum rotation pressure: 110 bar
• Hydraulic connections for rotation: 1/2”

Jaw technical data

• Operating weight*: 1600 Kg
• Height: 1900 mm
• Maximum opening: 860 mm
• Jaw depth: 670 mm
• Cutter blade length: 230 mm
• Max clamping force at tip: 50 ton
• Maximum clamping force at shears: 230 ton
• Type of carrier:
  • Wheeled excavator
  • Tracked excavator

Compatibility & mounting
Mounting bracket compatible with HP 2000 - HP 2500. Check hydraulic flow and pressure on the carrier to match the specified ranges (oil delivery 150–250 l/min; rotation flow max 20 l/min).

Notes
* Operating weight includes mounting bracket compatible with Indeco construction standards. Data and illustrations are indicative and may be modified without notice for product development and improvement.
