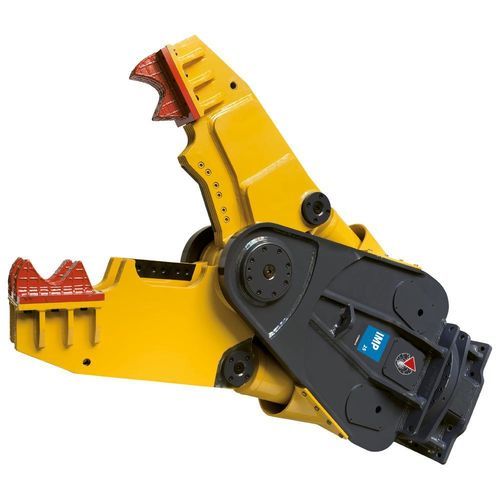

Hydraulic demolition shears IMP 25

combifor excavators

Overview

• MULTIPROCESSOR
• Combi Cutter configuration

Technical specifications

• Excavator weight*: 20–45 t
• Width: 495 mm
• Oil delivery: 200–300 l/min
• Maximum pressure at cylinders: 350 bar
• Closure time (no-load): 3 s
• Opening time (no-load): 1.5 s
• Hydraulic connections for cylinders: 3/4"
• Maximum rotation flow: 25 l/min
• Maximum rotation pressure: 110 bar
• Hydraulic connections for rotation: 1/2"
• Mounting bracket compatibility: HP 3000–HP 4000

JAW TECHNICAL DATA

• Operating weight*: 2600 kg
• Height: 2300 mm
• Maximum opening: 1100 mm
• Jaw depth: 860 mm
• Cutter blade length: 345 mm
• Max clamping force at tip: 95 t
• Maximum clamping force at shears: 340 t
• Type of carrier: Wheeled excavator; Tracked excavator

Notes
* The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.
N.B. All illustrations and numerical data in this catalog are purely indicative and subject to change at our discretion and without notice. We therefore reserve the right to modify them with a view to improving and continuously developing our product.

Characteristics / technical specifications

• Excavator weight*: 20–45 t
• Width: 495 mm
• Oil delivery: 200–300 l/min
• Maximum pressure at cylinders: 350 bar
• Closure time (no-load): 3 s
• Opening time (no-load): 1.5 s
• Hydraulic connections for cylinders: 3/4"
• Maximum rotation flow: 25 l/min
• Maximum rotation pressure: 110 bar
• Hydraulic connections for rotation: 1/2"
• Mounting bracket compatibility: HP 3000–HP 4000
• Operating weight*: 2600 kg (jaw)
• Height: 2300 mm (jaw)
• Maximum opening: 1100 mm (jaw)
• Jaw depth: 860 mm
• Cutter blade length: 345 mm
• Max clamping force at tip: 95 t
• Maximum clamping force at shears: 340 t
• Type of carrier: Wheeled and Tracked excavator
