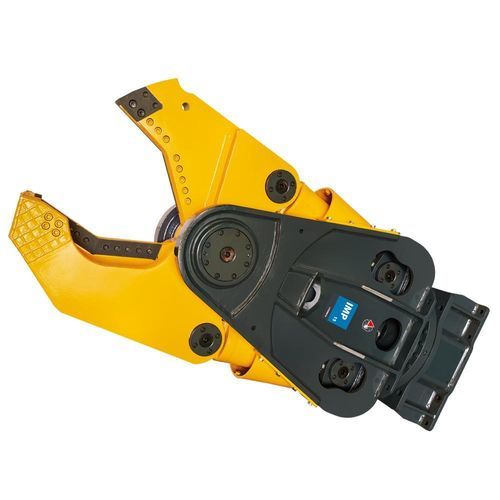

Hydraulic demolition shears IMP 15

for excavatorsfor steelfor scrap metal

Product
MULTIPROCESSOR
IMP 15 — shear configuration for demolition and recycling on excavators (12–24 t). Designed for cutting, dismantling and processing metal and structural elements.

Technical specifications
Excavator weight*: 12 ÷ 24 t
Width: 425 mm
Oil delivery: 150 ÷ 250 l/min
Maximum pressure at cylinders: 350 bar
Closure time (no-load): 2 s
Opening time (no-load): 1 s
Hydraulic connections for cylinders: 3/4”
Maximum rotation flow: 20 l/min
Maximum rotation pressure: 110 bar
Hydraulic connections for rotation: 1/2”
Mounting bracket compatibility: HP 2000 - HP 2500

JAW TECHNICAL DATA
Operating weight (jaw)*: 1600 kg
Height: 1950 mm
Maximum opening: 450 mm
Jaw depth: 500 mm
Cutter blade length: 490 mm
Max clamping force at tip: 55 t
Maximum clamping force at shears: 220 t

Type of carrier

• Wheeled excavator
• Tracked excavator

Notes
* The operating weight of the equipment includes the mounting bracket compatible with Indeco construction standards. Differences in weight may be due to a different mounting bracket configuration.
N.B. All illustrations and numerical data are indicative and may be modified without notice to allow product improvements and development.
