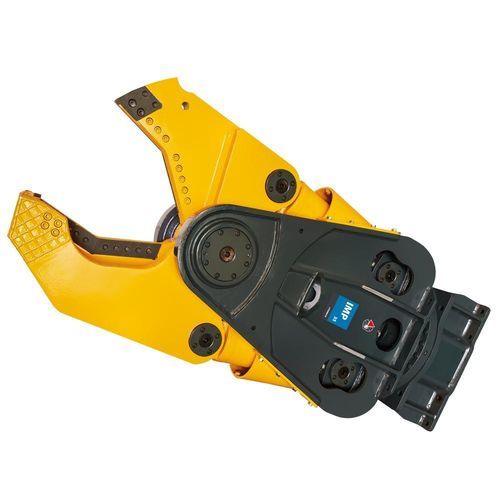

Hydraulic demolition shears IMP 35

for controlled demolitionfor excavators

Product line
MULTIPROCESSOR — shear configuration

Product
IMP 35

Typology
Shear configuration for material processing and demolition tasks

TECHNICAL SPECIFICATIONS
Excavator weight*: 28 ÷ 55 ton
Width: 590 mm
Oil delivery: 220 ÷ 320 l/min
Maximum pressure at cylinders: 350 bar
Closure time (no-load): 4 s
Opening time (no-load): 2 s
Hydraulic connections for cylinders: 1”1/4
Maximum rotation flow: 30 l/min
Maximum rotation pressure: 110 bar
Hydraulic connections for rotation: 1/2”
Mounting bracket compatibility: HP 5000

JAW TECHNICAL DATA
Operating weight*: 3700 Kg
Height: 2515 mm
Maximum opening: 640 mm
Jaw depth: 710 mm
Cutter blade length: 660 mm
Max clamping force at tip: 120 ton
Maximum clamping force at shears: 420 ton

Type of carrier

• Tracked excavator

Notes
* The operating weight of the equipment includes the mounting bracket compatible with Indeco construction standards. Any difference in weight may be due to a different mounting bracket configuration.
N.B. All illustrations and numerical data in this catalog are indicative and may be changed at the manufacturer's discretion without notice. Changes may be made for product improvement and development purposes.

Characteristics / technical specifications

• Excavator weight*: 28 ÷ 55 ton
• Width: 590 mm
• Oil delivery: 220 ÷ 320 l/min
• Maximum pressure at cylinders: 350 bar
• Closure time (no-load): 4 s
• Opening time (no-load): 2 s
• Hydraulic connections for cylinders: 1”1/4
• Rotation: flow 30 l/min, pressure max 110 bar, connection 1/2”
• Mounting bracket compatibility: HP 5000
• Operating weight (jaws)*: 3700 Kg
• Height: 2515 mm
• Maximum opening: 640 mm
• Jaw depth: 710 mm
• Cutter blade length: 660 mm
• Max clamping force at tip: 120 ton
• Maximum clamping force at shears: 420 ton
• Applicable to tracked excavators
