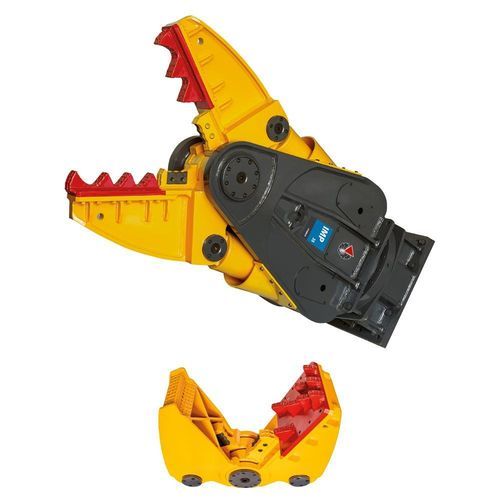

Concrete hydraulic crusher IMP 35

for excavators

Product
Multiprocessor pulverizer IMP 35 for demolition and material processing, designed for use on tracked excavators. Compatible with HP 5000 mounting bracket.

TECHNICAL SPECIFICATIONS

• Excavator weight*: 28 ÷ 55 ton
• Width: 590 mm
• Oil delivery: 220 ÷ 320 l/min
• Maximum pressure at cylinders: 350 bar
• Closure time (no-load): 4 s
• Opening time (no-load): 2 s
• Hydraulic connections for cylinders: 1”1/4
• Maximum rotation flow: 30 l/min
• Maximum rotation pressure: 110 bar
• Hydraulic connections for rotation: 1/2”
• Mounting bracket compatibility: HP 5000

JAW TECHNICAL DATA

• Operating weight*: 3600 Kg
• Height: 2500 mm
• Maximum opening: 1050 mm
• Jaw depth: 870 mm
• Cutter blade length: 180 mm
• Max clamping force at tip: 110 ton
• Maximum clamping force at shears: 430 ton
• Type of carrier: Tracked excavator

Notes
* The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.
N.B. All illustrations and numerical data in this catalog are purely indicative and subject to change at our discretion and without notice. We therefore reserve the right to modify them with a view to improving and continuously developing our product.
