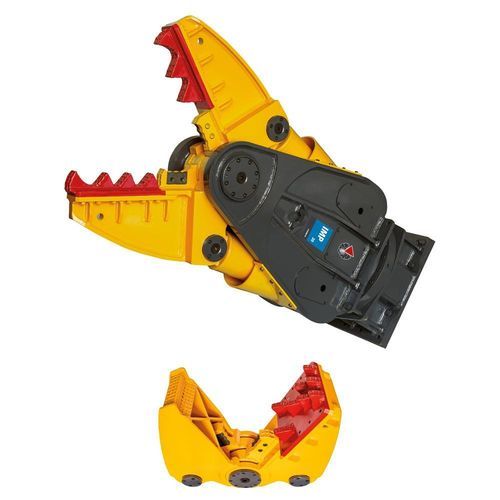

Concrete hydraulic crusher IMP 20

for primary demolitionfor excavators

Product
Multiprocessor pulverizer IMP 20 designed for demolition, primary crushing and selective dismantling on excavators. Compatible with wheeled and tracked carriers in the 17–36 t class.

Applications

• Demolition of reinforced concrete structures
• Primary crushing and reduction of bulky elements
• Separation of concrete and reinforcement for recycling
• Selective dismantling in urban and industrial sites

Notes
* The operating weight of the equipment includes the mounting bracket compatible with Indeco construction standards. Any weight differences may be due to a different mounting bracket configuration.
N.B. All illustrations and numerical data in this catalog are indicative and subject to change without notice. The manufacturer reserves the right to modify specifications for product improvement.

Main technical specifications

• Recommended excavator weight*: 17–36 t
• Overall width: 475 mm
• Oil delivery: 180–250 l/min
• Maximum pressure at cylinders: 350 bar
• Closure time (no-load): 2.5 s
• Opening time (no-load): 1.2 s
• Hydraulic connections for cylinders: 3/4″
• Maximum rotation flow: 25 l/min
• Maximum rotation pressure: 110 bar
• Hydraulic connections for rotation: 1/2″
• Mounting bracket compatibility: HP 3000–HP 4000

Jaw technical data

• Jaw operating weight*: 2080 kg
• Height: 2070 mm
• Maximum opening: 800 mm
• Jaw depth: 640 mm
• Cutter blade length: 120 mm
• Max clamping force at tip: 65 t
• Maximum clamping force at shears: 280 t
• Type of carrier: wheeled excavator; tracked excavator
