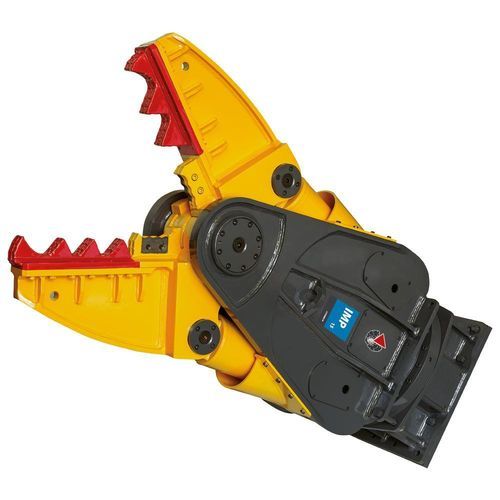

Excavator hydraulic crusher IMP 15

Overview
MULTIPROCESSOR
IMP 15
Crusher configuration

Technical specifications

• Excavator weight*: 12 ÷ 24 ton
• Width: 425 mm
• Oil delivery: 150 ÷ 250 l/min
• Maximum pressure at cylinders: 350 bar
• Closure time (no-load): 2 s
• Opening time (no-load): 1 s
• Hydraulic connections for cylinders: 3/4"
• Maximum rotation flow: 20 l/min
• Maximum rotation pressure: 110 bar
• Hydraulic connections for rotation: 1/2"
• Mounting bracket compatibility: HP 2000 - HP 2500

Jaw technical data

• Operating weight*: 1500 Kg
• Height: 1900 mm
• Maximum opening: 815 mm
• Jaw depth: 595 mm
• Cutter blade length: 120 mm
• Max clamping force at tip: 50 ton
• Maximum clamping force at shears: 230 ton

Type of carrier

• Wheeled excavator
• Tracked excavator

Notes
* The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.
N.B. All illustrations and numerical data in this catalog are purely indicative and subject to change at our discretion and without notice. We therefore reserve the right to modify them with a view to improving and continuously developing our product.

Complete technical data

• Excavator weight*: 12 ÷ 24 ton
• Width: 425 mm
• Oil delivery: 150 ÷ 250 l/min
• Maximum pressure at cylinders: 350 bar
• Closure time (no-load): 2 s
• Opening time (no-load): 1 s
• Hydraulic connections for cylinders: 3/4"
• Maximum rotation flow: 20 l/min
• Maximum rotation pressure: 110 bar
• Hydraulic connections for rotation: 1/2"
• Mounting bracket compatibility: HP 2000 - HP 2500
• Operating weight*: 1500 Kg
• Height: 1900 mm
• Maximum opening: 815 mm
• Jaw depth: 595 mm
• Cutter blade length: 120 mm
• Max clamping force at tip: 50 ton
• Maximum clamping force at shears: 230 ton
• Type of carrier: Wheeled excavator; Tracked excavator
