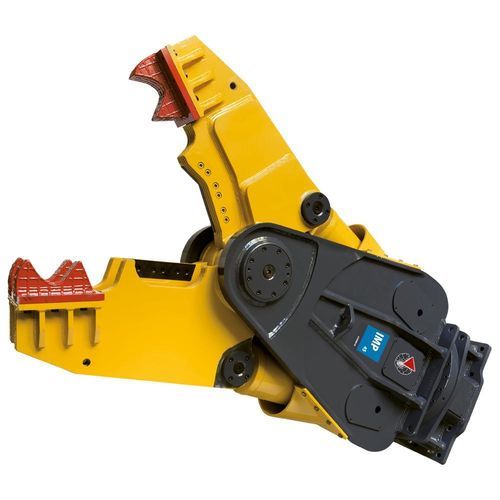

Primary demolition hydraulic crusher IMP 45

for secondary demolitionfor excavatorscombi

Product
Multiprocessor combi cutter IMP 45 designed for demolition, recycling and scrap processing. Combines cutting and shearing functions in a single tool, suitable for heavy tracked excavators in the 38–65 t class. Compact 640 mm body width for improved access on confined sites.

Technical specifications

• Excavator weight*: 38 ÷ 65 ton
• Width: 640 mm
• Oil delivery: 270 ÷ 370 l/min
• Maximum pressure at cylinders: 350 bar
• Closure time (no-load): 4 s
• Opening time (no-load): 2 s
• Hydraulic connections for cylinders: 1”1/4
• Maximum rotation flow: 30 l/min
• Maximum rotation pressure: 110 bar
• Hydraulic connections for rotation: 1/2”
• Mounting bracket compatibility: HP 7000 - HP 9000

Jaw technical data

• Operating weight*: 4900 Kg
• Height: 2700 mm
• Maximum opening: 1300 mm
• Jaw depth: 1050 mm
• Cutter blade length: 460 mm
• Max clamping force at tip: 130 ton
• Maximum clamping force at shears: 460 ton

Type of carrier

• Tracked excavator

Notes
* The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration. N.B. All illustrations and numerical data in this catalog are purely indicative and subject to change at our discretion and without notice. We therefore reserve the right to modify them with a view to improving and continuously developing our product.
