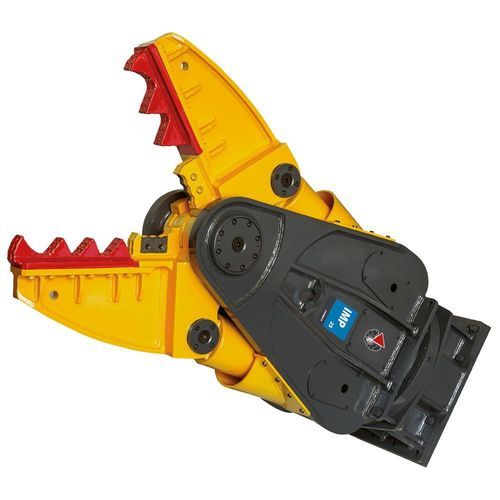

Excavator hydraulic crusher IMP 25

Product overview
Multiprocessor in crusher configuration (model IMP 25) for demolition and material processing. Designed for excavators in the 20 ÷ 45 t range and compatible with HP 3000 ÷ HP 4000 mounting brackets.

Technical specifications
Excavator weight range*: 20 ÷ 45 t
Overall width: 495 mm
Oil delivery: 200 ÷ 300 l/min
Maximum pressure at cylinders: 350 bar
Closure time (no-load): 3 s
Opening time (no-load): 1.5 s
Hydraulic connections for cylinders: 3/4”
Maximum rotation flow: 25 l/min
Maximum rotation pressure: 110 bar
Hydraulic connections for rotation: 1/2”
Mounting bracket compatibility: HP 3000 ÷ HP 4000

Jaw technical data
Operating weight*: 2400 Kg
Height: 2290 mm
Maximum opening: 1050 mm
Jaw depth: 760 mm
Cutter blade length: 180 mm
Max clamping force at tip: 95 t
Maximum clamping force at shears: 340 t

Compatible carriers

• Wheeled excavator
• Tracked excavator

Notes
* The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Variations in weight may be due to a different mounting bracket configuration.
N.B. Illustrations and numerical data in this catalog are indicative and subject to change without notice. We reserve the right to modify them for product improvement and development.

Features / technical specifications

• Model: IMP 25
• Product type: Multiprocessor - Crusher configuration
• Suitable excavator weight range: 20 ÷ 45 t
• Overall width: 495 mm
• Hydraulic flow required: 200 ÷ 300 l/min
• Max cylinder pressure: 350 bar
• Rotation: max flow 25 l/min; max pressure 110 bar; rotation hydraulic connection 1/2”
• Cylinder hydraulic connection: 3/4”
• Mounting bracket compatibility: HP 3000 ÷ HP 4000
• Jaw operating weight: 2400 Kg
• Jaw height: 2290 mm
• Jaw maximum opening: 1050 mm
• Jaw depth: 760 mm
• Cutter blade length: 180 mm
• Clamping force at tip: 95 t
• Clamping force at shears: 340 t
• Compatible carriers: wheeled and tracked excavators
