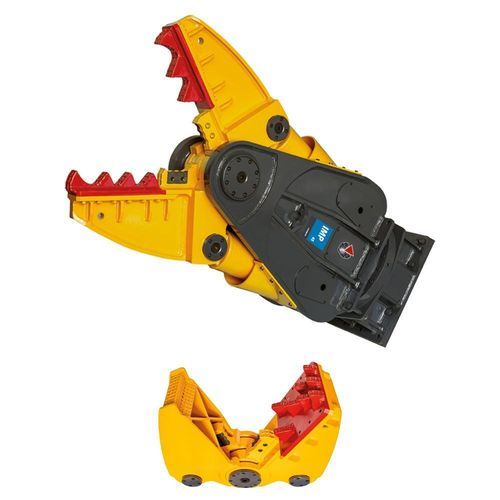

Concrete hydraulic crusher IMP 45

for secondary demolitionfor excavators

Product family
MULTIPROCESSOR — Pulverizer configuration.

Overview
The IMP 45 is a multiprocessor pulverizer attachment designed for demolition and material processing on tracked excavators. It is compatible with HP 7000 - HP 9000 mounting brackets and is intended for high-flow hydraulic systems where large jaw opening and high clamping force are required.

Technical specifications
Excavator weight*: 38–65 t
Width: 640 mm
Oil delivery: 270–370 l/min
Maximum pressure at cylinders: 350 bar
Closure time (no-load): 4 s
Opening time (no-load): 2 s
Hydraulic connections for cylinders: 1.25 in
Maximum rotation flow: 30 l/min
Maximum rotation pressure: 110 bar
Hydraulic connections for rotation: 1/2 in
Mounting bracket compatibility: HP 7000 - HP 9000

Jaw technical data
Operating weight*: 4700 Kg
Height: 2730 mm
Maximum opening: 1150 mm
Jaw depth: 950 mm
Cutter blade length: 180 mm
Max clamping force at tip: 130 ton
Maximum clamping force at shears: 480 ton
Type of carrier: Tracked excavator

Notes
* The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration. N.B. All illustrations and numerical data in this catalog are purely indicative and subject to change at our discretion and without notice. We therefore reserve the right to modify them with a view to improving and continuously developing our product.

Characteristics / technical specifications

• Excavator weight*: 38–65 t
• Width: 640 mm
• Oil delivery: 270–370 l/min
• Maximum pressure at cylinders: 350 bar
• Closure time (no-load): 4 s
• Opening time (no-load): 2 s
• Hydraulic connections for cylinders: 1.25 in
• Maximum rotation flow: 30 l/min
• Maximum rotation pressure: 110 bar
• Hydraulic connections for rotation: 1/2 in
• Mounting bracket compatibility: HP 7000 - HP 9000
• Operating weight*: 4700 Kg
• Height: 2730 mm
• Maximum opening: 1150 mm
• Jaw depth: 950 mm
• Cutter blade length: 180 mm
• Max clamping force at tip: 130 ton
• Maximum clamping force at shears: 480 ton
• Type of carrier: Tracked excavator
