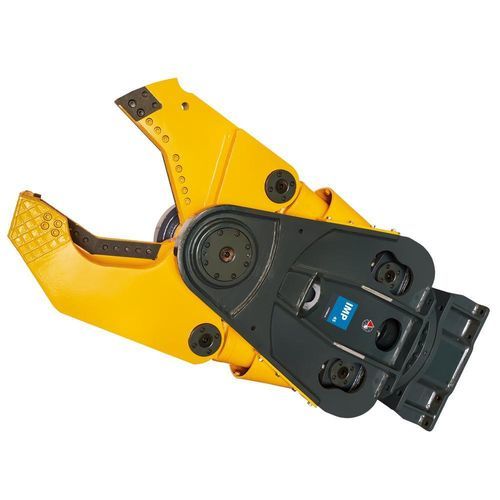

Hydraulic demolition shears IMP 45

for excavatorsfor controlled demolition

Product overview
IMP 45 multiprocessor shear in shear configuration for material processing and demolition tasks. Designed for tracked excavators in the 38–65 t class and compatible with HP 7000 – HP 9000 mounting brackets.

Technical specifications

• Excavator weight: 38–65 t
• Width: 640 mm
• Oil delivery: 270–370 l/min
• Maximum pressure at cylinders: 350 bar
• Closure time (no-load): 4 s
• Opening time (no-load): 2 s
• Hydraulic connections for cylinders: 1¼″
• Maximum rotation flow: 30 l/min
• Maximum rotation pressure: 110 bar
• Hydraulic connections for rotation: 1/2″
• Mounting bracket compatibility: HP 7000 - HP 9000

Jaw technical data

• Operating weight (jaw): 4,900 kg
• Height: 2,760 mm
• Maximum opening: 700 mm
• Jaw depth: 780 mm
• Cutter blade length: 720 mm
• Max clamping force at tip: 140 t
• Maximum clamping force at shears: 460 t
• Type of carrier: Tracked excavator

Mounting & compatibility
Mounting brackets compatible with Indeco standards. Standard compatibility: HP 7000 – HP 9000.

Notes
* The operating weight of the equipment includes the mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration.
N.B. All illustrations and numerical data are indicative and may be modified without notice for product improvement and development.
