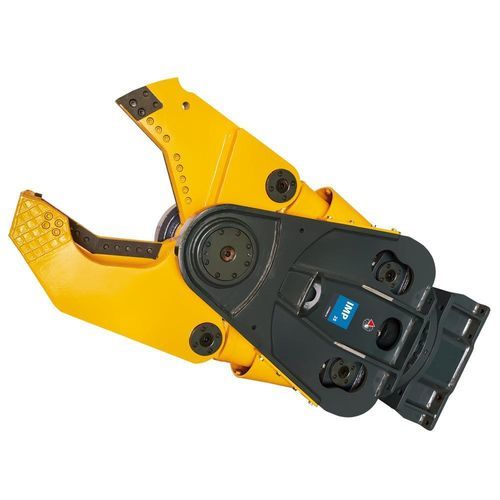

Hydraulic shear IMP 25for metalfor scrap metalfor concrete reinforcements
Add to favorites
Compare this product
Characteristics
- Operation
- hydraulic
- Application
- for metal, for scrap metal, for concrete reinforcements, for steel bar, for tubes
- Working length
Max.: 600 mm
(23.62 in)Min.: 600 mm
(23.62 in)- Pressing force
Max.: 3,236,194.5 N
Min.: 882,598.5 N
Description
Product
MULTIPROCESSOR
IMP 25
Shear configuration
Overview
The IMP 25 is a multiprocessor in shear configuration designed for heavy demolition and processing tasks when mounted on excavators. It is intended for carriers in the 20 ÷ 45 ton class and is compatible with specific Indeco mounting brackets. The unit integrates hydraulic and mechanical features required for cutting, dismantling and handling of structural materials on site.
TECHNICAL SPECIFICATIONS
Excavator weight*: 20 ÷ 45 ton
Width: 495 mm
Oil delivery: 200 ÷ 300 l/min
Maximum pressure at cylinders: 350 bar
Closure time (no-load): 3 s
Opening time (no-load): 1.5 s
Hydraulic connections for cylinders: 3/4”
Maximum rotation flow: 25 l/min
Maximum rotation pressure: 110 bar
Hydraulic connections for rotation: 1/2”
Mounting bracket compatibility: HP 3000 ÷ HP 4000
JAW TECHNICAL DATA
Operating weight*: 2600 Kg
Height: 2340 mm
Maximum opening: 550 mm
Jaw depth: 620 mm
Cutter blade length: 600 mm
Max clamping force at tip: 90 ton
Maximum clamping force at shears: 330 ton
Type of carrier:
Notes
* The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration. All illustrations and numerical data are indicative and subject to change without notice. The manufacturer reserves the right to modify specifications for development purposes.
Technical characteristics
MULTIPROCESSOR
IMP 25
Shear configuration
Overview
The IMP 25 is a multiprocessor in shear configuration designed for heavy demolition and processing tasks when mounted on excavators. It is intended for carriers in the 20 ÷ 45 ton class and is compatible with specific Indeco mounting brackets. The unit integrates hydraulic and mechanical features required for cutting, dismantling and handling of structural materials on site.
TECHNICAL SPECIFICATIONS
Excavator weight*: 20 ÷ 45 ton
Width: 495 mm
Oil delivery: 200 ÷ 300 l/min
Maximum pressure at cylinders: 350 bar
Closure time (no-load): 3 s
Opening time (no-load): 1.5 s
Hydraulic connections for cylinders: 3/4”
Maximum rotation flow: 25 l/min
Maximum rotation pressure: 110 bar
Hydraulic connections for rotation: 1/2”
Mounting bracket compatibility: HP 3000 ÷ HP 4000
JAW TECHNICAL DATA
Operating weight*: 2600 Kg
Height: 2340 mm
Maximum opening: 550 mm
Jaw depth: 620 mm
Cutter blade length: 600 mm
Max clamping force at tip: 90 ton
Maximum clamping force at shears: 330 ton
Type of carrier:
- Wheeled excavator
- Tracked excavator
Notes
* The operating weight of the equipment includes mounting bracket compatible with Indeco construction standards. Any differences in weight may be due to a different mounting bracket configuration. All illustrations and numerical data are indicative and subject to change without notice. The manufacturer reserves the right to modify specifications for development purposes.
Technical characteristics
- Excavator weight*: 20 ÷ 45 ton
- Width: 495 mm
- Oil delivery: 200 ÷ 300 l/min
- Maximum pressure at cylinders: 350 bar
- Closure time (no-load): 3 s
- Opening time (no-load): 1.5 s
- Hydraulic connections for cylinders: 3/4”
- Maximum rotation flow: 25 l/min
- Maximum rotation pressure: 110 bar
- Hydraulic connections for rotation: 1/2”
- Mounting bracket compatibility: HP 3000 ÷ HP 4000
- Operating weight (jaw)*: 2600 Kg
- Height: 2340 mm
- Maximum opening: 550 mm
- Jaw depth: 620 mm
- Cutter blade length: 600 mm
- Max clamping force at tip: 90 ton
- Maximum clamping force at shears: 330 ton
- Type of carrier: Wheeled and Tracked excavator
