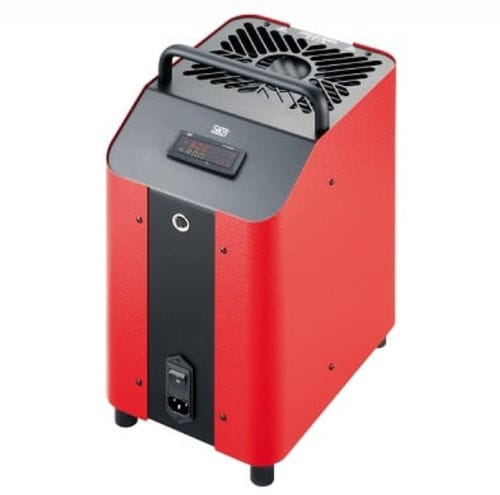

High-temperature dry block heater TP 17-Basic

compact

Overview
Portable SIKA TP 17-Basic dry-well temperature furnace designed for on-site checks or laboratory use. The TP Basic series is engineered for field use with an emphasis on portability and efficiency. Optimal thermal coupling between the insert and the tested element is achieved by drilling a hole with a diameter recommended to be 0.5 mm larger than the external diameter of the tested element. Some Ø60 mm wells can accommodate multiple probes or sensors simultaneously.

Function — dry-well
The dry-well calibrator covers its full temperature range without the need to change the calibration medium, avoiding issues related to liquid media (viscosity, maintenance). The insert ensures effective heat transfer to the device under test.

Applications

• Commissioning and start-up
• Manufacturing and production
• Maintenance and after-sales service
• Quality assurance and test equipment monitoring
• Repair

Models available

• TP 17200: Dry-well calibrator — Range -55…200°C — Insert Ø 28 mm — Depth 150 mm
• TP 17165: Dry-well calibrator — Range -35…165°C — Insert Ø 28 mm — Depth 150 mm
• TP 17166: Dry-well calibrator — Range -35…165°C — Insert Ø 60 mm — Depth 150 mm
• TP 17450: Dry-well calibrator — Range Ambient…450°C — Insert Ø 60 mm — Depth 150 mm
• TP 17650: Dry-well calibrator — Range Ambient…650°C — Insert Ø 28 mm — Depth 150 mm

Technical specifications

• Type: Portable dry-well temperature calibrator
• Temperature range: -55…650°C (depending on model)
• Accuracy: ±0.4°C to ±0.8°C (depending on model)
• Stability: ±0.1°C
• Inserts available: Ø 28 mm and Ø 60 mm (depending on model)
• Insert depth: 150 mm
• Note: Recommended drill diameter 0.5 mm larger than the external diameter of the tested element for optimal thermal coupling
• Ø60 mm wells can accommodate multiple probes simultaneously
